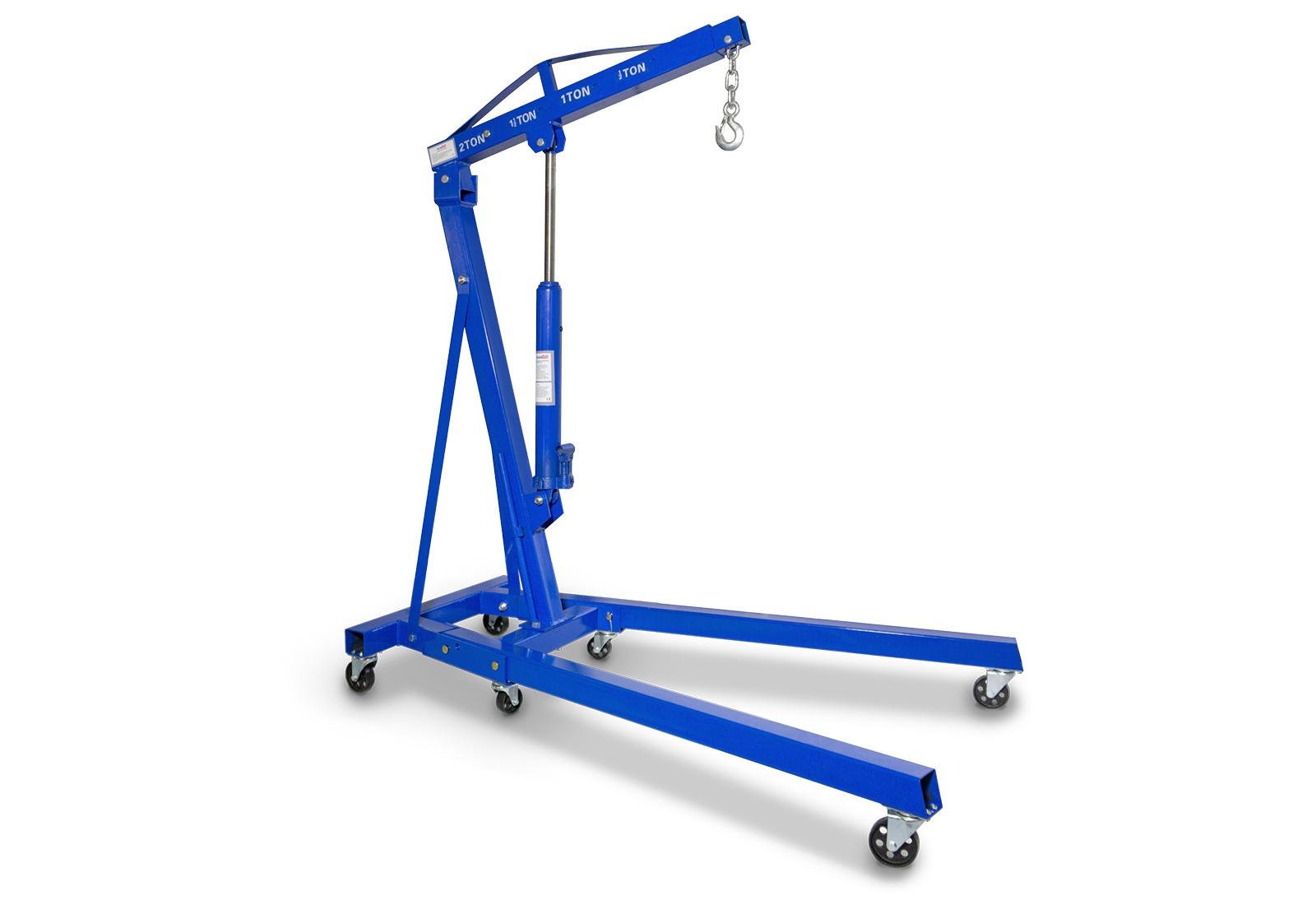

Mobile hydraulic crane for engine lifting MHK2000 with spread chassis, SolidHub
.svg){kind=icon}
-
ModelMHK2000
-
Maximum load2.000 kg
-
MobileYes
-
Lifting height1.800 mm
-
Weight70 kg
-
ColourBlue
-
SurfacePainted
-
Width920 mm
-
Depth1.560 mm
-
Height1.510 mm - 2.100 mm
-
Range of applicationIndoor
- 1 x MHK2000 hydraulic motor crane from SolidHub
- 12 Months warranty
Flexible lifting of loads weighing up to 2.000 kg. Our new MHK2000 hydraulic motor crane from SolidHub makes it possible. With a total weight of just 70 kg and a foldable chassis, the workshop crane is not just easy to store, but also easy to transport. This is made even easier by the 6 swivel castors on which the spread chassis is mounted. When fully extended, the motor crane has a lifting height of 1.800 mm. Even so, it takes up a minimum of space. The compact dimensions (920 mm x 1.560 mm x 1.510 - 2.100 mm) make the handy workshop jack easy to handle. When lowered, it is 151 cm tall and can lift up to a height of 59 cm.
The handy hydraulic system can lift loads easily and quickly.
The assembled crane jib can also be extended in 4 stages between 104 and 154 cm. It is important to note that the maximum working load limit decreases depending on the position selected. The motor lifting crane can only lift a full 2.000 kg when the telescopic arm is fully retracted. When the telescopic arm is fully extended, the maximum working load limit is 500 kg.
Please inform yourself about the nationally relevant regulations in the country of use before you operate the device. The user is responsible for initial operation and for selecting the appropriate personnel for this purpose.
-
ModelMHK2000
-
Maximum load2.000 kg
-
MobileYes
-
Lifting height1.800 mm
-
Weight70 kg
-
ColourBlue
-
SurfacePainted
-
Width920 mm
-
Depth1.560 mm
-
Height1.510 mm - 2.100 mm
-
Range of applicationIndoor
- 1 x MHK2000 hydraulic motor crane from SolidHub
- 12 Months warranty
At this time, SolidHub does not offer equipment with initial lift - a feature that raises the truck's wheel arms to provide additional ground clearance during load pickup and transport. However, we do have models in our line that have free lift. This feature allows the forks or load to be lifted without changing the overall height of the lift mast. An example of this is our HEF16/5 product.
To safely unload your new SolidHub stacker from the pallet, drive it off the pallet with the forks first. This will prevent damage to property or personal injury.
Our tip: Place the pallet in front of a kerb, as its height often corresponds to the height of a pallet. This allows you to drive your lifting device off the pallet almost at ground level.
The SolidHub HE1200/3 and HE1200/4 electric pallet trucks can transport loads of up to 1,200 kg.
Here you will find all the information you need to read a load chart.
