Electric cable winch SW1000, 500 kg - 1.000 kg, 30 m Cable, SolidHub
- Guaranteed spare parts supply and customer service
- Easy installation on ceilings or walls thanks to the pre-drilled screw holes
- Compact and powerful device with a 2.200 W strong electric motor
- Tear-resistant 6 mm thick and 30 m long steel cable, for maximum safety during use
- Guaranteed spare parts supply and customer service
- Easy installation on ceilings or walls thanks to the pre-drilled screw holes
- Compact and powerful device with a 2.200 W strong electric motor
- Tear-resistant 6 mm thick and 30 m long steel cable, for maximum safety during use
.svg){kind=icon}
-
ModelSW1000
-
Maximum load1.000 kg
-
Speed200 mm/s
-
Energy sourceCable
-
Weight40 kg
-
ColourBlue
-
SurfacePainted
-
Width380 mm
-
Depth335 mm
-
Height270 mm
-
Outer diameter6 mm
-
Motor power2.200 W
-
Rotational speed2.800 rpm
-
Cable length45 cm
-
Protection classIP40
-
Range of applicationIndoor
-
Rope length30 m

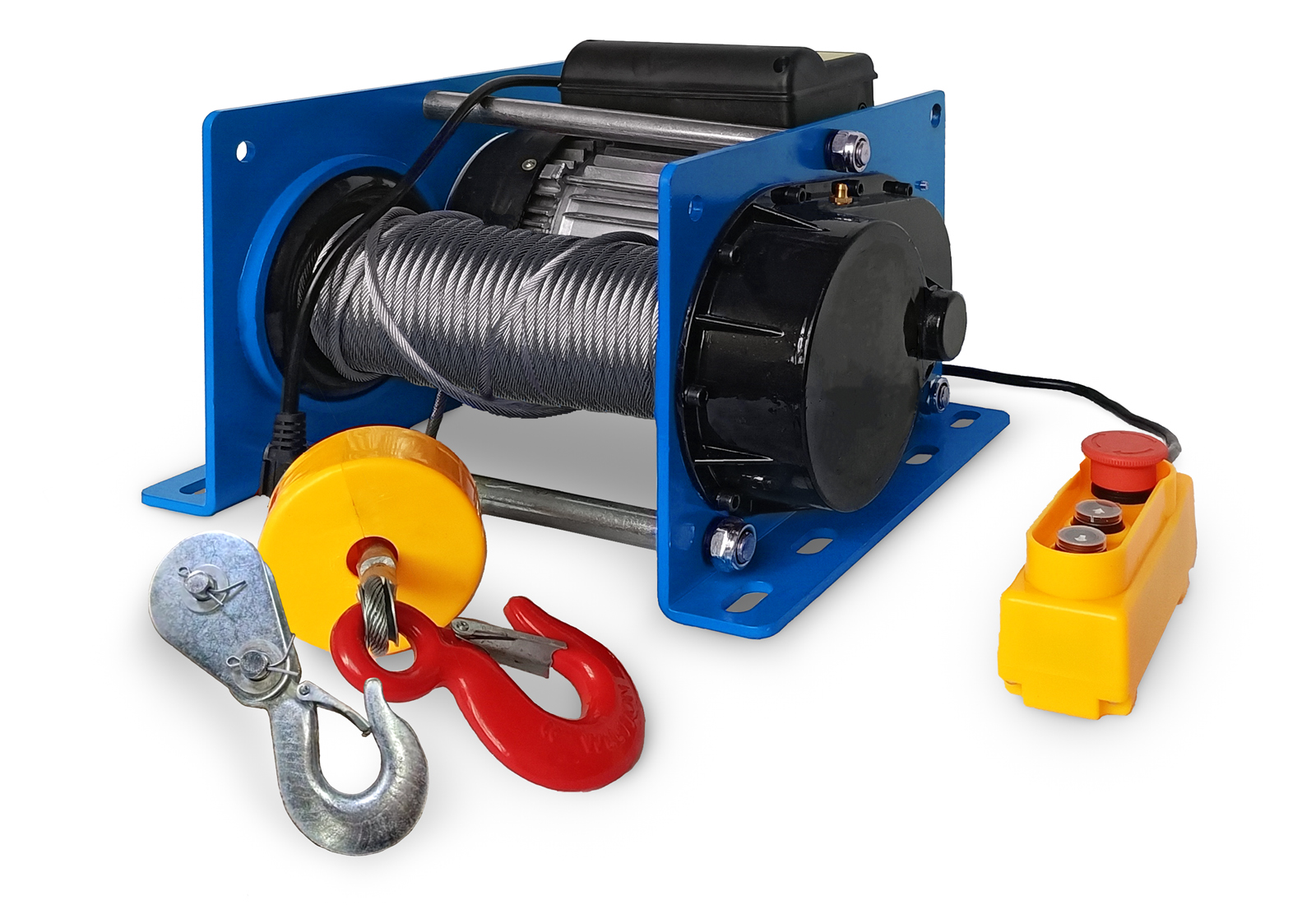

- 1 x electric cable winch SW1000, 1.000 kg, 30 m cable, SolidHub
- 12 Months warranty
- Guaranteed spare parts supply and customer service
- Easy installation on ceilings or walls thanks to the pre-drilled screw holes
- Compact and powerful device with a 2.200 W strong electric motor
- Tear-resistant 6 mm thick and 30 m long steel cable, for maximum safety during use

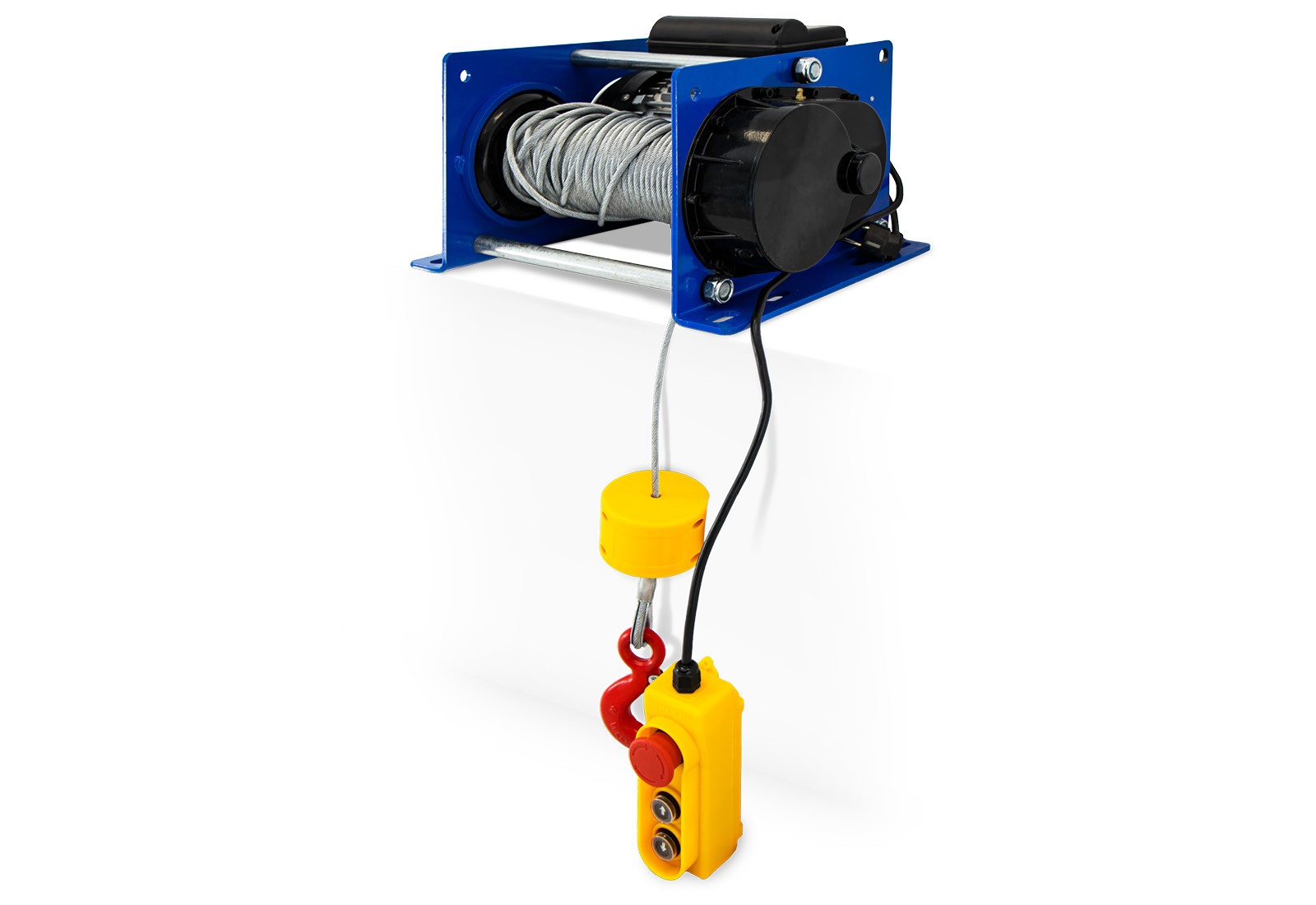

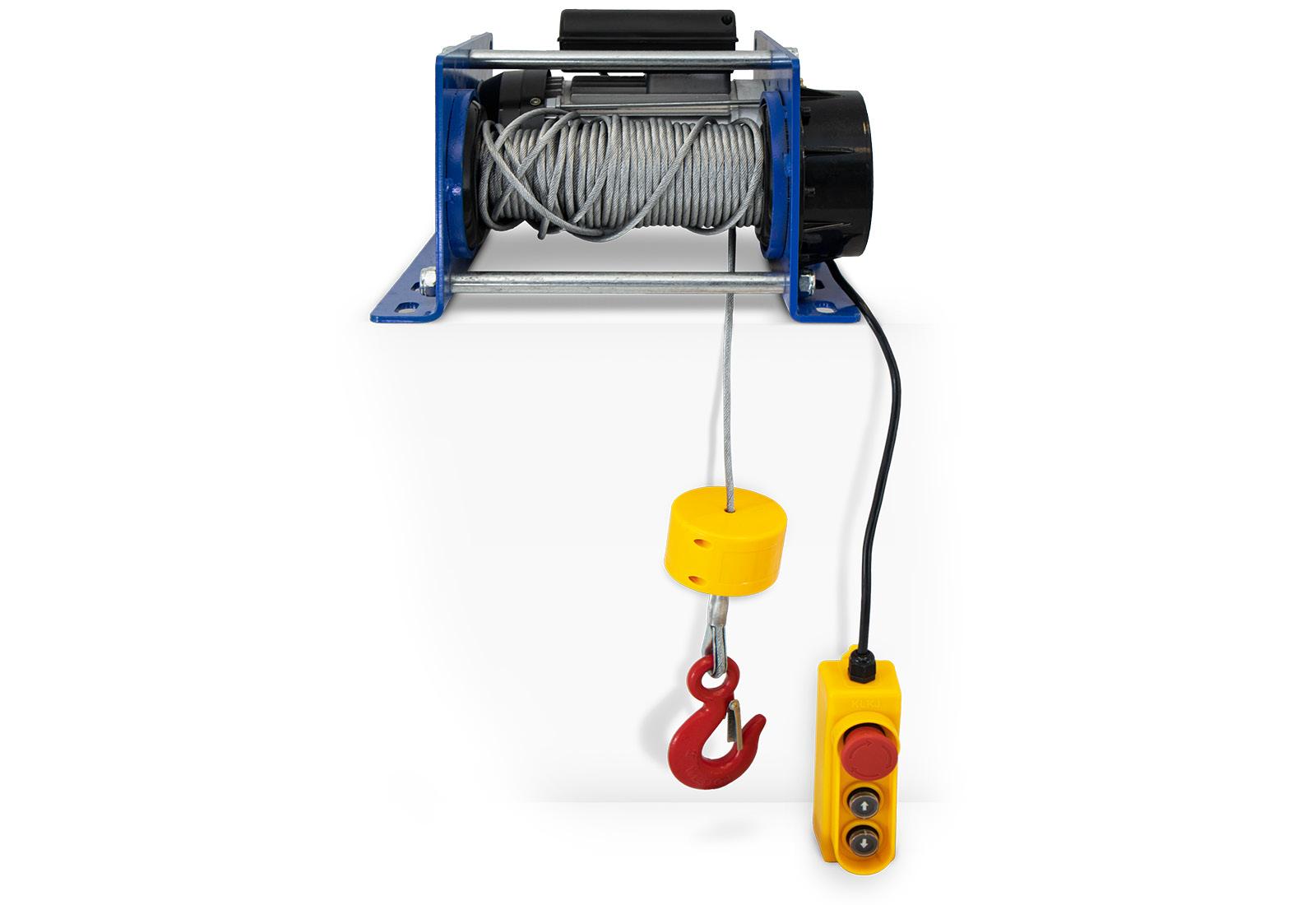

Lift goods quickly and safely
This is possible with our electric cable winch SW1000 from SolidHub. This practical product, with its 30 m long carbon steel cable, reliably lifts a maximum weight of between 500 kg and 1.000 kg and a pull-in speed of 200 mm/s. The cable winch has a maximum lifting force of 500 kg when lifting a load directly. For weights of up to 1.000 kg, the supplied guide pulley with lifting hook must be securely installed in the cable system, where it is advisable to attach the compact lifting device (380 mm x 335 mm x 270 mm) to a statically tested support. The particularly low weight of 40 kg and the 8 pre-drilled screw holes (13 x 30 mm) allow convenient mounting on the ceiling or other scaffolding that fulfils the static requirements. Once the robust aluminium housing has been installed, it can be used for an impressively long time.
When dynamically pulling in and lowering the 6 mm thick steel cable, both the 2.200 W powerful electric motor, with an incredible speed of 2.800 rpm, and the integrated magnetic powder brake ensure safety at work. The power supply is ensured by the 45 cm long power cable and a standard 230 V socket.
Whether it's a large pallet, equipment requiring maintenance or any other application, the SW1000 electric cable winch from SolidHub lifts and lowers your load smoothly. Opt now for exceptionally comfortable lifting with the SW1000 winch.
Instructions for use:
The electric cable winch SW1000 is intended for indoor use. With protection class IP40, the powerful lifting device is not protected against splash water and is therefore not weatherproof.
Please inform yourself about the nationally relevant regulations in the country of use before you operate the device. The user is responsible for initial operation and for selecting the appropriate personnel for this purpose.
-
ModelSW1000
-
Maximum load1.000 kg
-
Speed200 mm/s
-
Energy sourceCable
-
Weight40 kg
-
ColourBlue
-
SurfacePainted
-
Width380 mm
-
Depth335 mm
-
Height270 mm
-
Outer diameter6 mm
-
Motor power2.200 W
-
Rotational speed2.800 rpm
-
Cable length45 cm
-
Protection classIP40
-
Range of applicationIndoor
-
Rope length30 m
- 1 x electric cable winch SW1000, 1.000 kg, 30 m cable, SolidHub
- 12 Months warranty
