Tyre racks & rim racks

A tyre rack provides safe and professional storage for car tyres, rims and complete wheels. TOPREGAL tyre racks are designed to minimise the contact surface between the tyres and the shelves thanks to the stepped beams and are thus optimally distributed over the entire tyre. Whether tyres, rims or complete wheels – we offer the right shelf depth for all common tyre sizes.

Please select your Tire rack

Fitting rack depth for your tyre size
* Recommendation is based on the specified customs size.

  • Schonende Einlagerung auf Stufentraversen

  • Individuell steckbare Ebenen im Raster von 5cm
Tyre racks

Tyre racks Top seller

287,92
plus 16% VAT
Delivery time 3 - 5 Working days
Shipping 149,- € once per cart
Article No. 1930
4.6m tyre rack 200cm high / 40cm deep / 3 levels for 72 tyres
Max. load / level (kg): 400kg
429,90
plus 16% VAT
Delivery time 3 - 5 Working days
Shipping 149,- € once per cart
Article No. 1926
4.6m tyre rack 200cm high / 30cm deep / 4 levels for 96 tyres
Max. load / level (kg): 400kg
509,90
plus 16% VAT
Delivery time 3 - 5 Working days
Shipping 149,- € once per cart
Article No. 1934
4.6m tyre rack 200cm high / 50cm deep / 2 levels for 48 tyres
Max. load / level (kg): 400kg
359,90
plus 16% VAT
Delivery time 3 - 5 Working days
Shipping 149,- € once per cart
Article No. 1928
4.6m tyre rack 200cm high / 30cm deep / 6 levels for 144 tyres
Max. load / level (kg): 400kg
654,90
plus 16% VAT
Delivery time 3 - 5 Working days
Shipping 149,- € once per cart
Article No. 1984
6.9m tyre rack 200cm high / 30cm deep / 2 levels for 72 tyres
Max. load / level (kg): 400kg
469,90
plus 16% VAT
Delivery time 3 - 5 Working days
Shipping 149,- € once per cart
Article No. 1989
6.9m tyre rack 200cm high / 40cm deep / 2 levels for 72 tyres
Max. load / level (kg): 400kg
469,90
plus 16% VAT
Delivery time 3 - 5 Working days
Shipping 149,- € once per cart
Article No. 1994
6.9m tyre rack 200cm high / 50cm deep / 2 levels for 72 tyres
Max. load / level (kg): 400kg
469,90
plus 16% VAT
Delivery time 3 - 5 Working days
Shipping 149,- € once per cart
Article No. 9476
6.9m tyre rack 250cm high / 30cm deep / 2 levels for 72 tyres
Max. load / level (kg): 400kg
489,90
plus 16% VAT
Delivery time 3 - 5 Working days
Shipping 149,- € once per cart
Article No. 2007
6.9m tyre rack 250cm high / 30cm deep / 5 levels for 180 tyres
Max. load / level (kg): 400kg
819,90
plus 16% VAT
Delivery time 3 - 5 Working days
Shipping 149,- € once per cart
Product description

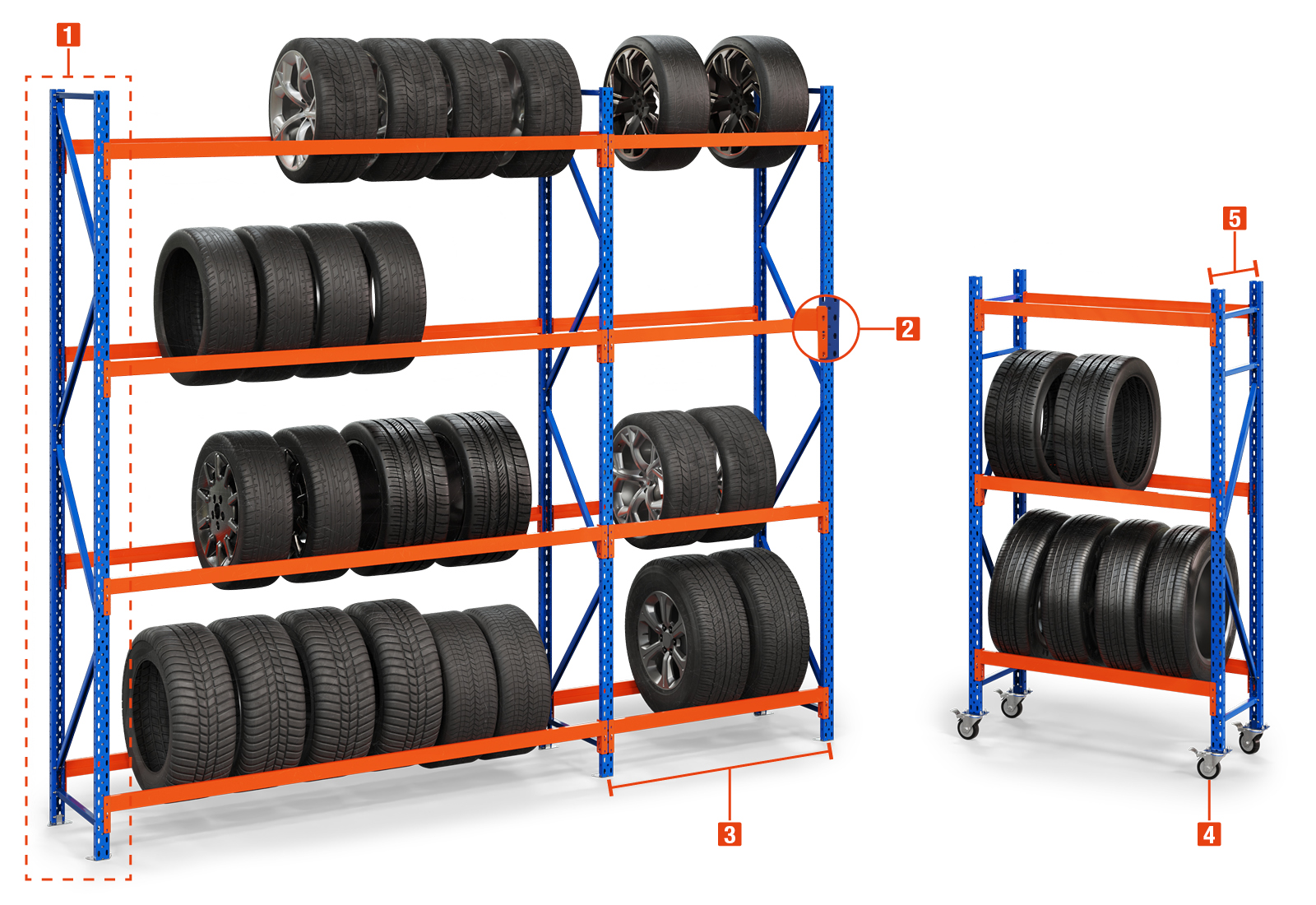

Type RR2000 tyre rack

Unit loads – stationary 2000kg / mobile 500kg


  • Height of rack 2m – 4m



  • Beams are the load carriers of a tyre rack. Individually height-adjustable in 5cm increments. Available in 110cm and 220cm



  • Various shelf types, extensive range of accessories



  • Different depths available for different tyre and rim sizes



  • Also available as a mobile version





  •
  • Modular system
  • Easy to assemble
  • Best price
  • All parts included

Types

Painted for indoor use

Overview of the uprights for LR2000 tyre rack

Painted uprights

  • variable heights
  • Unit load capacity: 2000kg
  • Complete upright incl. strutting and foot parts

Upright

Dimensions

Technical information

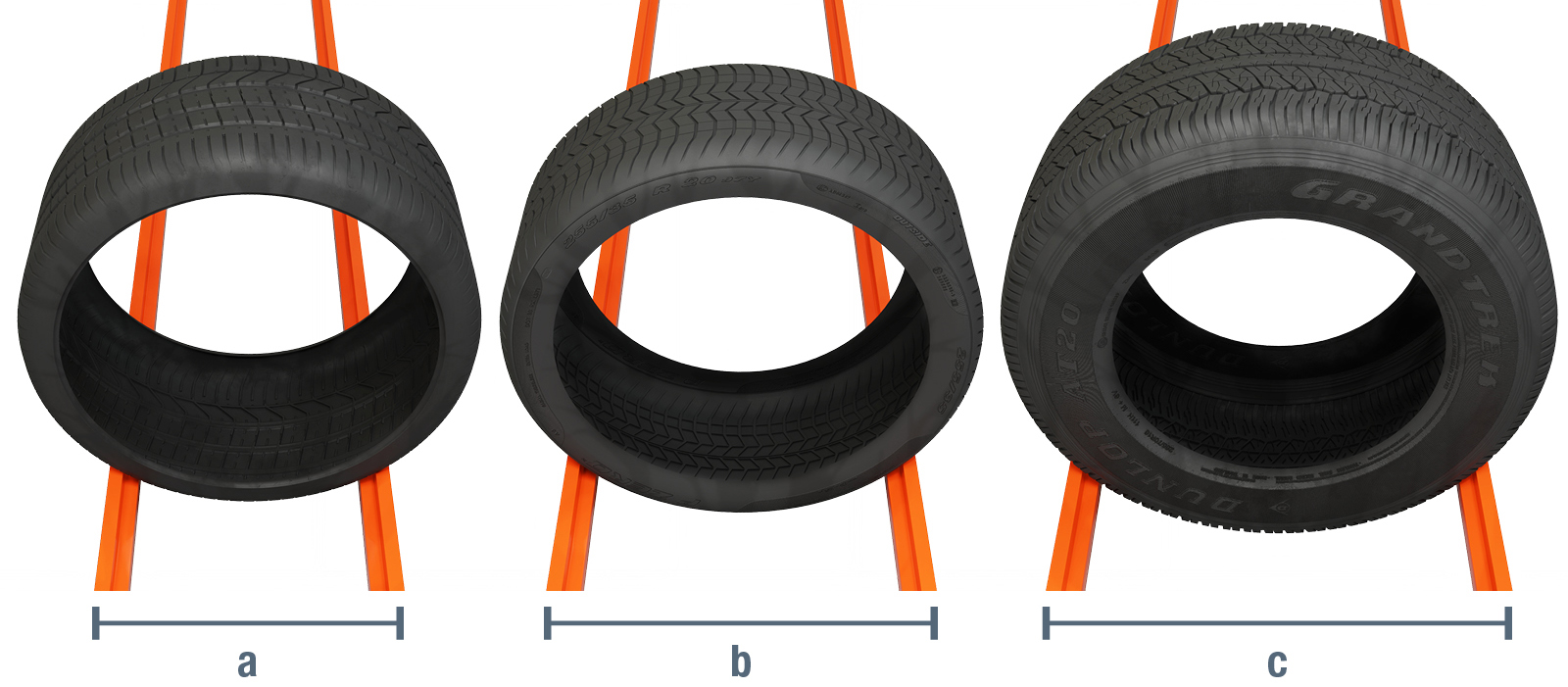

Suitable shelf depth for your tyre sizes*

40cm

13 – 15 inch

50cm

16 – 18 inches

60cm

19 – 29 inches

* Recommendations based on the average tyre size when using the specified size in inches.

Tyre sizes sorted by inches


Number of possible levels (recommendations)
based on tyre sizes 17 inches + 18 inches

Height of the tyre rack

2.0m = 3 levels

2.5m = 3 levels

3.0m = 4 levels

3.5m = 5 levels

4.0m = 5 levels

Variants

Stationary or mobile

With the height-adjustable foot with castor you can adjust the height of your tyre rack / tyre trolley up to 40cm. This results in individually adjustable heights of 89cm – 254cm depending on the type of rack/trolley and selected size.

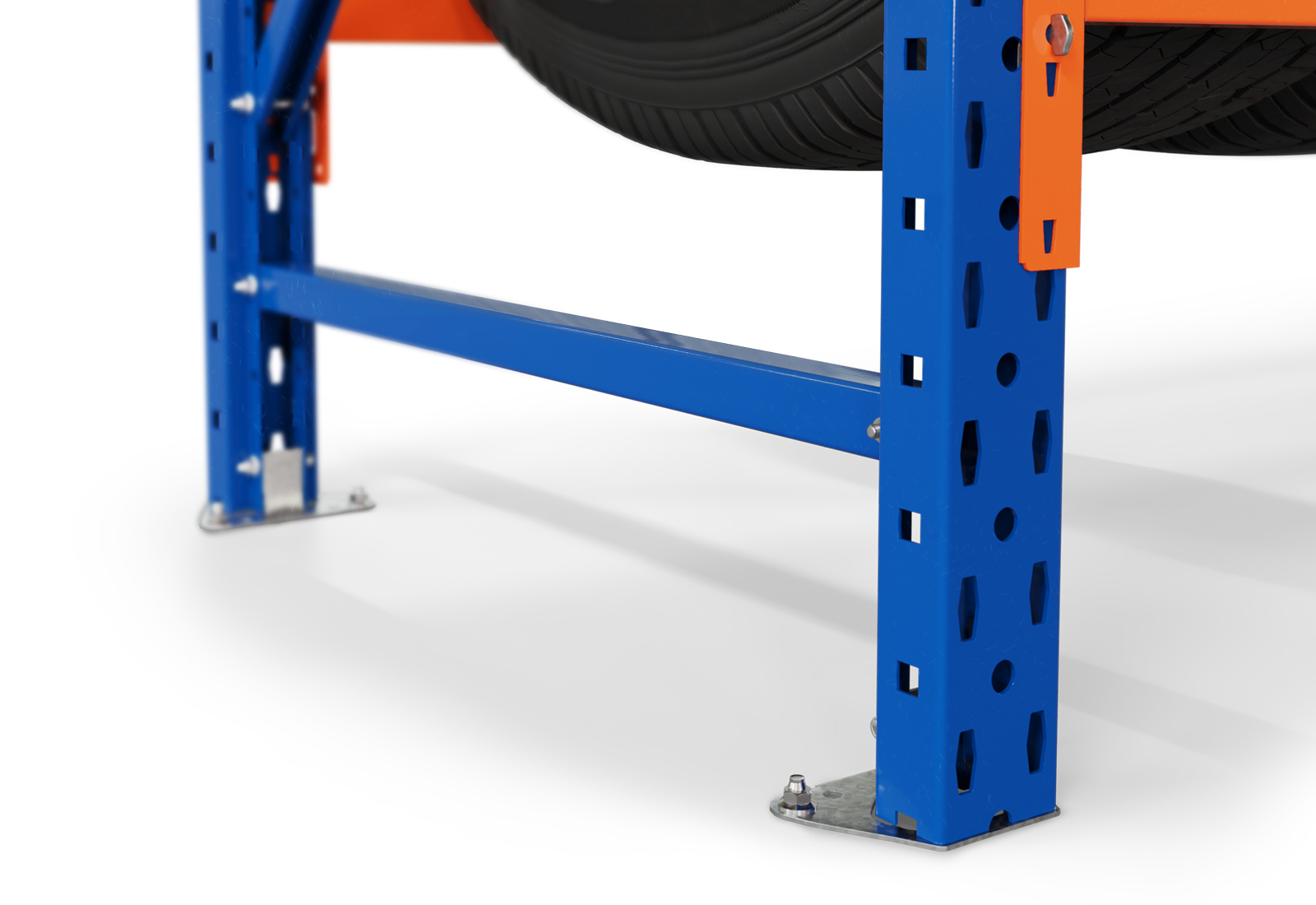

Stationary tyre rack

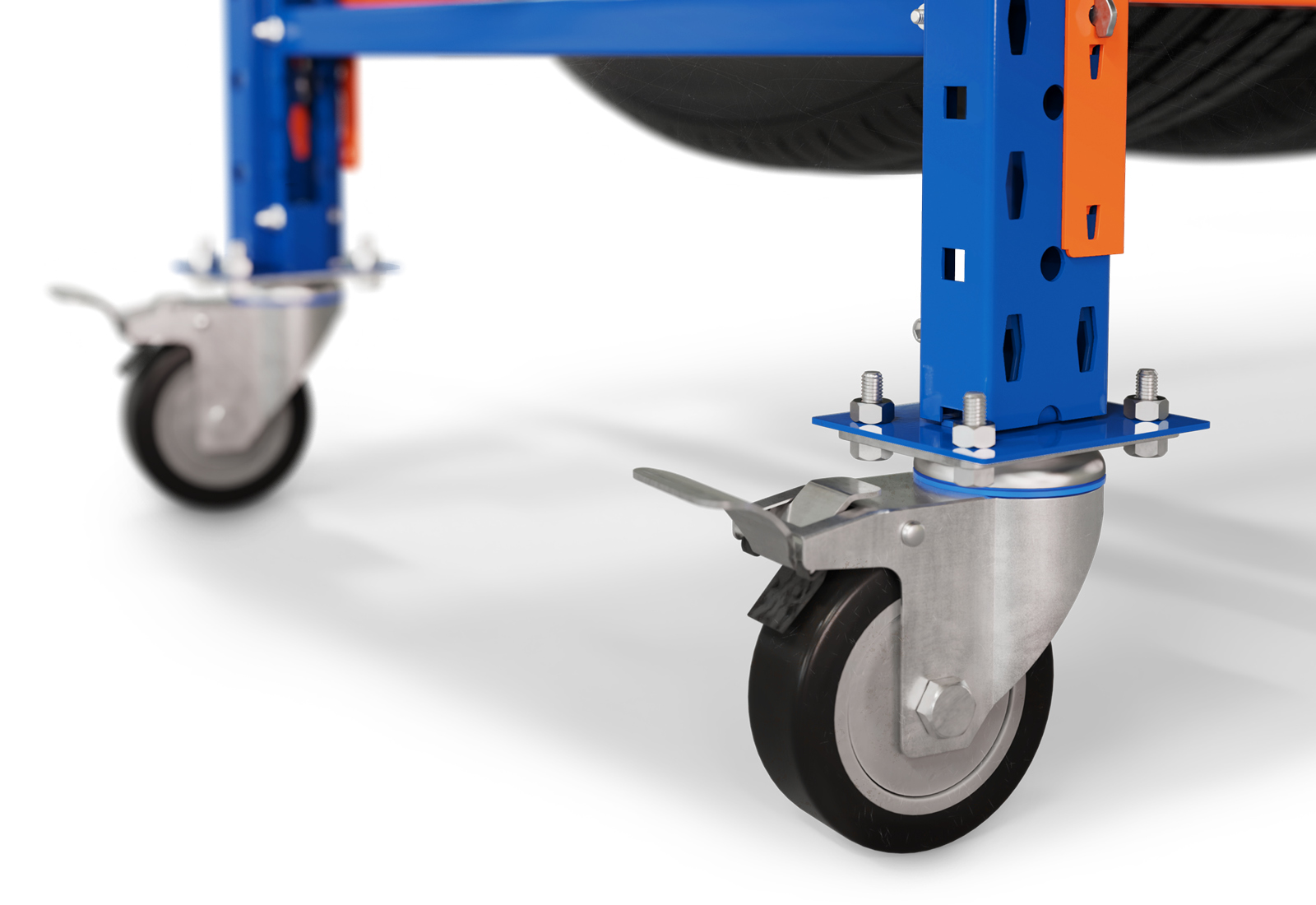

Mobile rack with height-adjustable foot

Unit, compartment and point load capacity

Unit load capacity stationary max. 2000kg

Unit load capacity mobile max. 500kg

  • Total load capacity between 2 horizontal bars

Unit load max. 400kg per level

  • Total load-bearing capacity per beam level or per shelf

Point load capacity per foot plate with evenly distributed load max. 1000kg

  • The rack’s upright generates a point load on the floor

Upright assembly

Technical information

Ground anchoring foot plate

The rack is fixed to the floor using bolt anchors M8x55

  • Drill holes: 8mm Ø, 80mm deep



  • Blow holes clean



  • Push bolt anchor into the drill hole



  • Tighten the nut firmly with a fork wrench or similar



If the height of the top shelf is less than 5 times the shelf depth, the rack does not need to be fixed or secured against tipping.



Please note: The bolt anchors must be properly fastened.



Our in-house assembly crew are happy to provide professional assembly of your racks.



Click here for more information about our rack assembly

Modular system

Thanks to the modular design, an existing rack can be added to and extended at any time.

Axial dimensions

  • The axial dimension describes the width of a shelf unit as well as the distance between two uprights



  • We offer axial dimensions of 110cm and 220cm



  • The axial dimensions can be freely combined with each other



  • Customise your tyre rack with your desired unit lengths. Due to the modular design, the racks can also be expanded retrospectively at any time.

Beam assembly

Technical information

Securing the beams

Required parts: Pre-assembled rack upright, beam, safety pin



Place the pre-assembled uprights in the required position and attach the beams to the upright at the desired height on both sides. Insert the safety pins into the hole provided in the beam.



The beams can be attached at 50mm increments.



Please note: Attach the last beam at least 50cm before the end of the upright!

Safety pin for beams

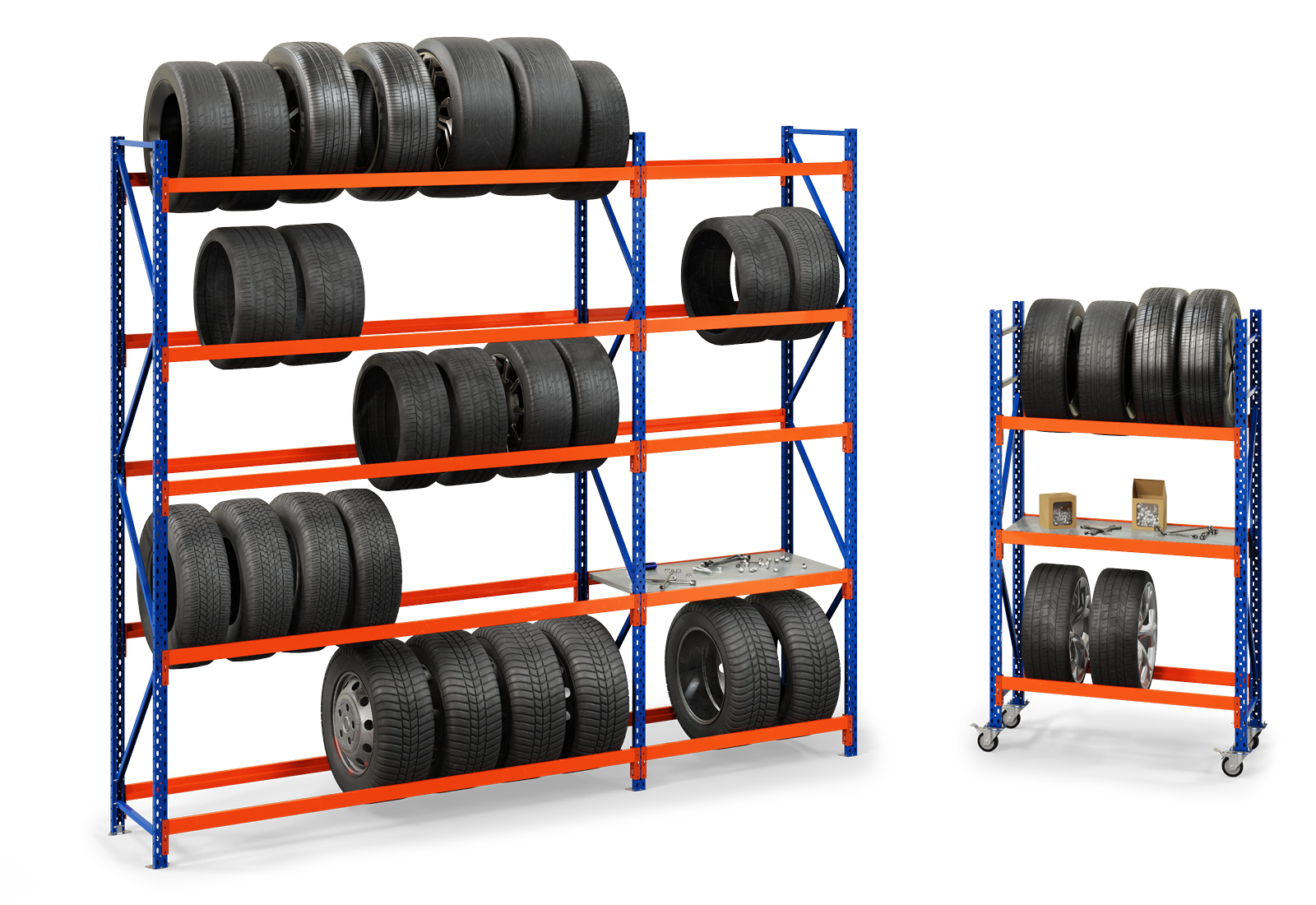

Tyre rack with shelves

(Optional for the tyre rack)

Individual levels can also be equipped with a shelf to store useful items such as tools used for assembly, rim cleaner, grease, wheel nuts, etc. In this way, a tyre rack can be adapted to your individual requirements.

Wooden shelf

Perfect for storing dry products such as cartons or storage boxes.

Steel shelf

Perfect for storing liquids, such as paints or oils, as it can be wiped clean.

Galvanised mesh shelf

Perfect for storing hazardous substances or liquids

Multiplex board

Perfect for use as a worktop, as it is very hard-wearing. The surface is sealed with linseed oil varnish and can therefore be wiped clean.

Spacers

Wall mounting / connecting

20cm spacer for fixing the rack to the wall.

Spacer for parallel positioning of tyre-rack rows. Alternatively, the racks can also be screwed together directly without spacing.


Colour: TOPREGAL blue (corresponds to RAL 5010).
For rack upright heights of up to 2.5m we recommend the use of 2 spacers.
From a height of 3m we recommend the use of 3 spacers.
All assembly material is included in the price and delivery volume.


Operational safety / regulation – DIN EN 15635, DGUV 108-007

Collision protection for shelving systems

Collision protection for avoiding possible damage to the rack upright.

Corner areas with forklift traffic must be equipped with collision protection in accordance with DIN EN 15365 & DGUV 108-007.

Our collision protection is tested and certified according to the specifications of DGUV 108-007 (formerly BGR234).

Each collision protector is supplied with four bolt anchors M12x100mm for securing to the floor.

Examples of possible configurations

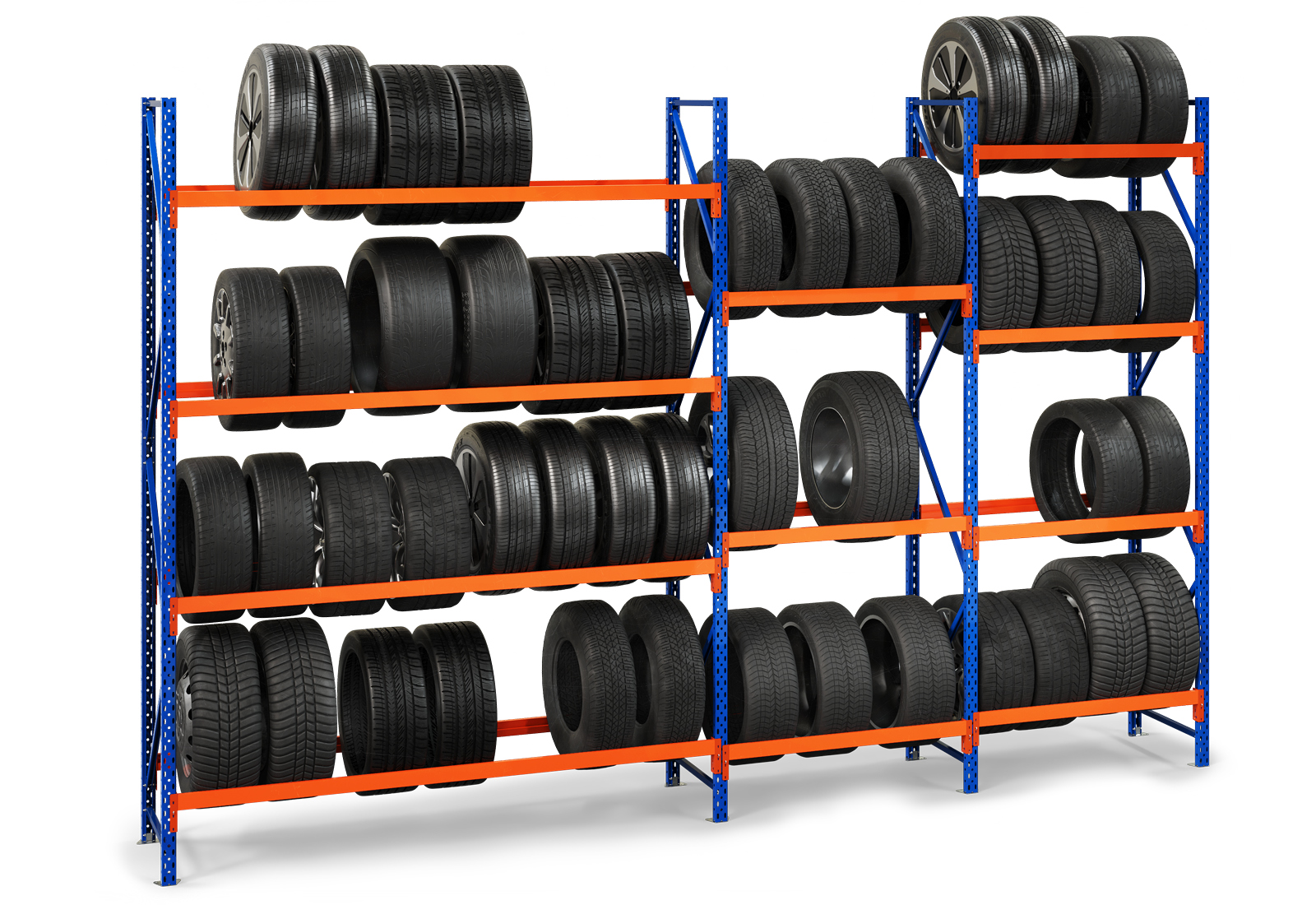

Examples of use

Accessories – suitable for LR2000

Cupboards & lockers

Go to > cupboards & lockers



Collision protection

Go to> safety & protection equipment



Perforated & side panel

Various types > perforated & side panels



Round beam

Go to > round beams



Magnetic tape

Different widths available > magnetic tapes



Height adjustment plates

Go to > shims



Pick bins

Different widths available > storage boxes



Spacer

Go to > spacers



Tyre racks – professional storage of tyres & rims

A tyre rack provides safe and professional storage for car tyres, rims and complete wheels. If you change your tyres regularly, e.g. twice a year to swap your summer to winter tyres and vice versa, then it is worth purchasing a professional tyre rack, as the storage of the complete wheels or tyres must be carried out carefully to prevent any pressure points from occurring due to incorrect storage. TOPREGAL tyre racks are designed to minimise the contact surface between the tyres and the shelves thanks to the stepped beams and are thus optimally distributed over the entire tyre. Whether tyres, rims or complete wheels – we offer the right shelf depth for all common tyre sizes. Three available depths can be easily selected in the configurator. In the smallest version, the basic rack offers space for 8 wheels – there are no limits to expand the rack in height. Thanks to the modular design, any number of shelves and racks can be combined and extended. The beams can be adjusted at individual heights.


The plug-in system makes it super easy to assemble the rim rack. The beams are simply inserted into the tyre rack uprights. If you prefer to store your tyres on the wall, you can order the wall bracket available in our range and secure the tyre rack to the wall. For transporting the tyres to the car, we also offer our tyre storage systems as tyre trolleys – equipped with four swivel castors, our mobile tyre racks offer maximum flexibility and are easy on the back.
