Mobile gantry crane PK1000/2 incl. electric chain hoist, B-goods, max. WLL 1.000 kg, lifting height 2190 mm, SolidHub
- Guaranteed spare parts supply and customer service
- Lift goods up to 1.000 kg in seconds thanks to the electric chain hoist
- Four swivel castors with parking brakes
- Ideal for repair work, in the workshop, during assembly and in warehouse technology
- Connection via power socket
- Guaranteed spare parts supply and customer service
- Lift goods up to 1.000 kg in seconds thanks to the electric chain hoist
- Four swivel castors with parking brakes
- Ideal for repair work, in the workshop, during assembly and in warehouse technology
- Connection via power socket
.svg){kind=icon}
-
ModelPK1000/2
-
Maximum load1.000 kg
-
MobileYes
-
Lifting height2.190 mm
-
Weight350 kg
-
ColourBlue
-
SurfacePainted
-
Width4.000 mm
-
Depth1.500 mm
-
Height3.000 mm
-
Motor power1.500 W
-
Range of applicationIndoor
- 1 x PK1000/2 gantry crane from SolidHub incl. electric chain hoist
- 1-year warranty
- Guaranteed spare parts supply and customer service
- Lift goods up to 1.000 kg in seconds thanks to the electric chain hoist
- Four swivel castors with parking brakes
- Ideal for repair work, in the workshop, during assembly and in warehouse technology
- Connection via power socket
INFO: The gantry crane is being offered as B-goods due to paint damage and scratches. This does not affect its functionality. The warranty remains fully valid.

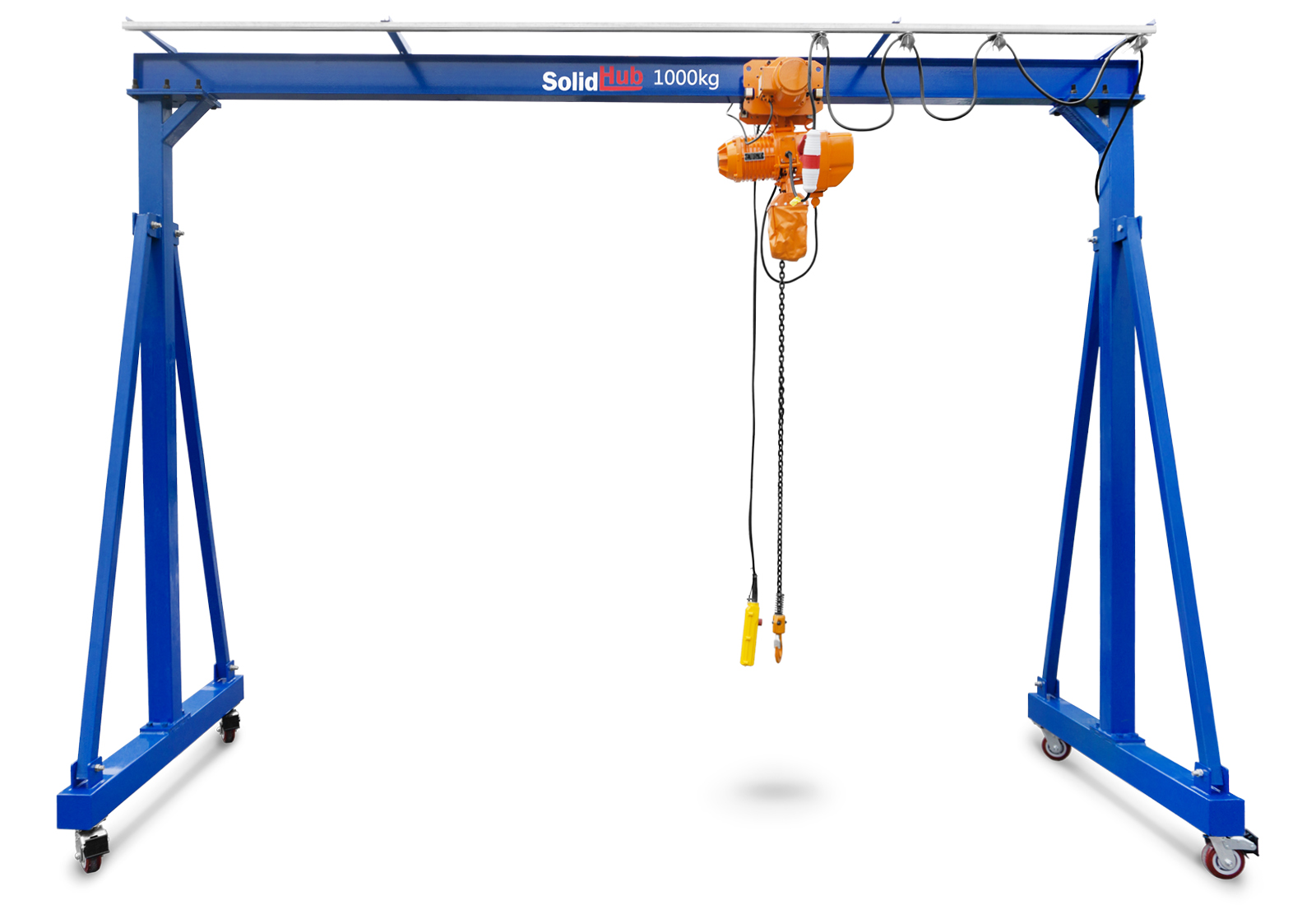

The practical PK1000/2 gantry crane
The PK1000/2 mobile gantry crane from SolidHub makes it easy to lift long, heavy goods weighing up to 1.000 kg. With a simple press of a button, the integrated electric chain hoist picks up goods in seconds using a load hook and moves them both horizontally and vertically. The lifting speed is 113 mm/s. The four swivel castors allow you to transport the gantry crane to wherever it is needed. The 4 parking brakes provide the necessary stability while in use. The PK1000/2 is therefore the ideal helper for repair work in the workshop or for assembly or warehouse technology. The hard-wearing steel trestle crane is 1.500 mm x 4.000 mm x 3.000 mm and has a maximum lifting height of 2.190 mm.
Easy to transport, easy to assemble
Thanks to the 4 swivel castors on the two A-shaped supports, the gantry crane can be transported very quickly and easily inside warehouses or in courtyards, with or without a raised load. For additional safety during lifting, the swivel castors can be secured using the parking brake fitted to each one. This stops it from moving accidentally while lifting and lowering.
As well as being easy to transport, it is also easy to assemble in advance. The light weight of the components means that the mobile gantry crane can be quickly assembled and used. All the elements required for assembly are included in the purchase price.
See for yourself the benefits of the handy PK1000/2 gantry crane from SolidHub.
Note: The power supply requires an industrial power socket (380 V).
Please inform yourself about the nationally relevant regulations in the country of use before you operate the device. The user is responsible for initial operation and for selecting the appropriate personnel for this purpose.
-
ModelPK1000/2
-
Maximum load1.000 kg
-
MobileYes
-
Lifting height2.190 mm
-
Weight350 kg
-
ColourBlue
-
SurfacePainted
-
Width4.000 mm
-
Depth1.500 mm
-
Height3.000 mm
-
Motor power1.500 W
-
Range of applicationIndoor
- 1 x PK1000/2 gantry crane from SolidHub incl. electric chain hoist
- 1-year warranty
