20,8 m Stadium LED display SBO-LED10G, perimeter LED screen, 13 panels, TecMaschin
- With up to 9.000 cd/m², the LED banner radiates clear, high-resolution advertising messages even in direct sunlight
- Thanks to the IP65 protection class, the LED advertising banner can withstand extreme weather conditions
- The soft-top cover minimises the risk of injury in the event of collisions and also protects the LEDs from damage caused by balls or other forces
- Gold wire standard for perfect signal transmission
- Thanks to the modular design and uncomplicated installation, no special equipment or skilled labour is required
- Includes all necessary components such as signal distribution boxes, fibre optic cables and power distribution boxes
- With up to 9.000 cd/m², the LED banner radiates clear, high-resolution advertising messages even in direct sunlight
- Thanks to the IP65 protection class, the LED advertising banner can withstand extreme weather conditions
- The soft-top cover minimises the risk of injury in the event of collisions and also protects the LEDs from damage caused by balls or other forces
- Gold wire standard for perfect signal transmission
- Thanks to the modular design and uncomplicated installation, no special equipment or skilled labour is required
- Includes all necessary components such as signal distribution boxes, fibre optic cables and power distribution boxes
-
ModelSBO-LED10G
-
Resolution160 x 96 px px
-
Weight46 kg
-
ColourBlack
-
Width1.600 mm
-
Depth132 mm
-
Height1.032 mm
-
Range of applicationIndoor / Outdoor
-
Working temperature-10 °C - 60 °C
-
Wide panel1.600 mm
-
Pixel pitch10 px
-
Total depth incl. supports752 mm
-
Total width20,8 m
- 13 x LED strip (1.600 mm x 132 mm x 1.032 mm)
- Power and signal cabling
- Novastar MCTRL4K box, Novastar CVT10 S 10 Pro boxes
- Power distribution box
- 12 Months warranty
- With up to 9.000 cd/m², the LED banner radiates clear, high-resolution advertising messages even in direct sunlight
- Thanks to the IP65 protection class, the LED advertising banner can withstand extreme weather conditions
- The soft-top cover minimises the risk of injury in the event of collisions and also protects the LEDs from damage caused by balls or other forces
- Gold wire standard for perfect signal transmission
- Thanks to the modular design and uncomplicated installation, no special equipment or skilled labour is required
- Includes all necessary components such as signal distribution boxes, fibre optic cables and power distribution boxes
Our LED stadium displays SBO-LED10G offer an effective advertising solution for stadiums, sports halls, trade fairs and many other environments. With an outstanding luminosity of up to 9.000 cd/m² and a pixel pitch of 10 mm, they guarantee clear, high-quality advertising messages - even in direct sunlight. The recommended viewing distance is between 10 m and 150 m, so the screens offer optimum visibility both up close and at a greater distance.
The panels are specially designed for outdoor use and, with an IP65 protection rating, can withstand extreme weather conditions, including high temperature fluctuations of -10 - 60 °C.
Thanks to the robust die-cast aluminium housing and a rubber module mask, the LEDs are optimally protected against strong impacts, which extends the service life to up to 100.000 h Operating hours. A soft-top cover minimises the risk of injury in the event of sporting collisions and protects the perimeter LED system from damage caused by impacts and balls, for example.
Quick and easy installation
Installation is quick and easy, with no need for professional technicians or specialised equipment. With a cabinet size of 1.600 mm x 132 mm x 1.032 mm and a weight of 46 kg, the LED strip can be used flexibly. Each cabinet consists of 15.360 pixels (with a resolution of 160 x 96 px) and has a maximum current consumption of 900 W.
Your customised complete LED boarding solution
The LED sports boards complete package, consisting of 13 panels with a total length of 20,8 m, also includes everything you need to get started. The Novastar MCTRL4K box allows you to display content quickly and easily on the board via your computer. With the fibre optic cables included in the set, the signals are forwarded to the Novastar CVT10 S 10 Pro boxes (master and back-up) so that you are always on the safe side. The built-in Gold Wire standard ensures perfect signal transmission. Power distribution boxes are also included in the set to ensure that the panels are supplied with sufficient power.

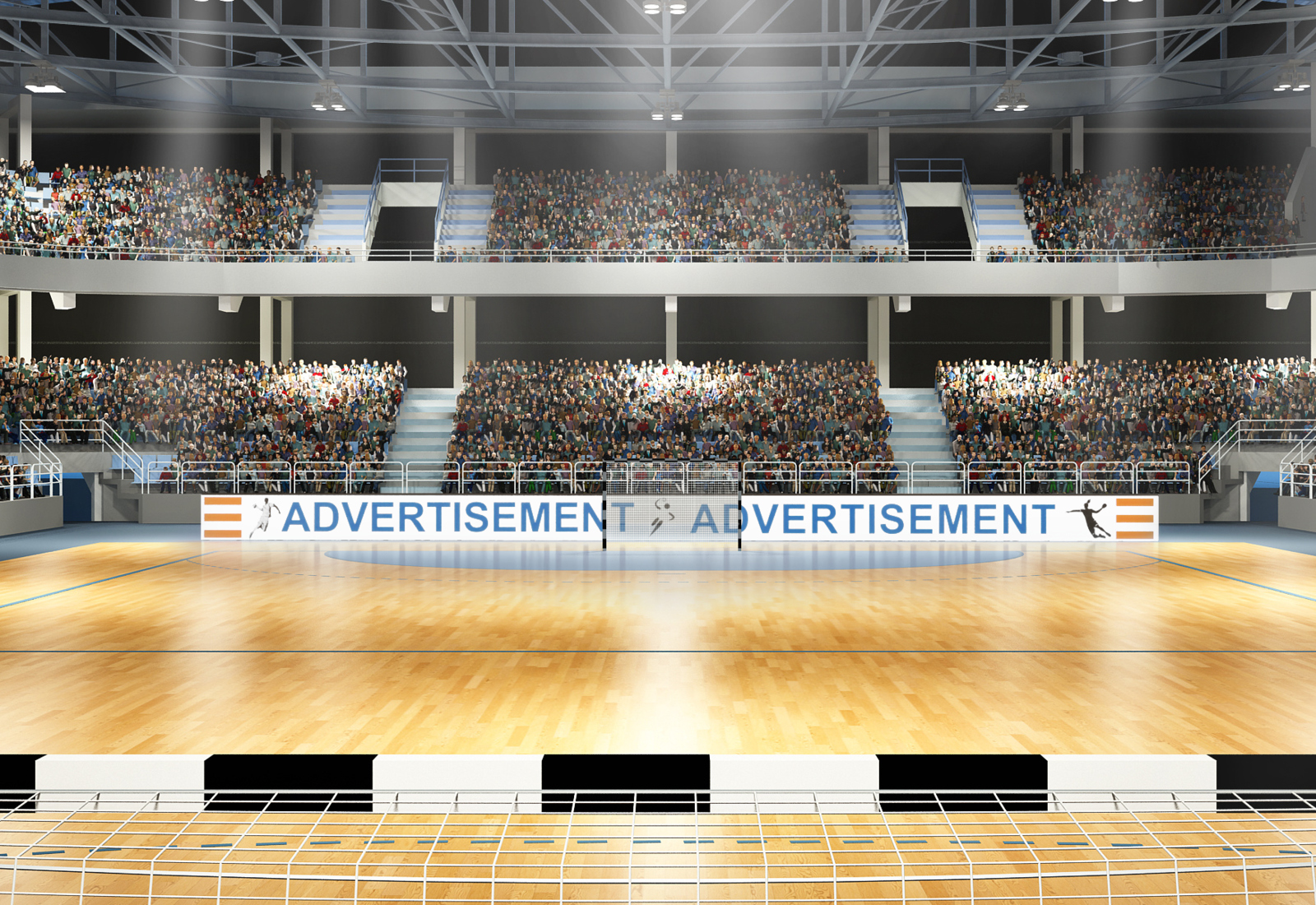

Whether in sports stadiums, arenas or at trade fairs - the SBO-LED10G Sports banners from TecMaschin guarantee maximum attention for your advertising.
Note:
With a socket fuse protection of 16 A, a maximum of 2 LED panels can be connected to one circuit. All power and signal cabling for the LED sports board is included in the price. Our team will contact you for correct and fast planning.
If required, the TOPREGAL installation team will also take care of the installation for you - simply request a quote for installation in the shopping basket with just a few clicks.
