2,3 m worktable basic table MFW1000-AT / 120 cm deep / 750 - 1.150 mm high / 2 levels / rack layer Galvanised mesh / perforated rear panel
- Galvanised mesh shelf for easy cleaning of the worktable
- Modular system allows combination with other rack types
- Bright signal colours of orange and blue
- Self-securing rack layers thanks to the practical stepped beams
- Galvanised mesh shelf for easy cleaning of the worktable
- Modular system allows combination with other rack types
- Bright signal colours of orange and blue
- Self-securing rack layers thanks to the practical stepped beams
-
ModelMFW1000-AT
-
Beam length2.200 mm
-
VersionBasic table
-
Number of levels2
-
MobileNo
-
Rack layerGalvanised mesh
-
Width2.300 mm
-
Depth1.200 mm
-
Height750 mm - 1.150 mm
- 2 x storage rack upright / 0,75 m high with 40 cm height-adjustable foot part / 120 cm deep with covers for rack upright
- 4 x storage-rack single beam 220 cm, compartment load capacity: 500 kg
- 2 x storage-rack mesh shelf 220 cm wide / 120 cm deep
- 1 x storage-rack perforated rear panel220 cm wide, 50 cm high
- All accessories such as screws, nuts and all material required for assembly
- Assembly instructions
- Load capacity labels in accordance with German DGUV 108-007 specification
- 5 Years warranty
- Galvanised mesh shelf for easy cleaning of the worktable
- Modular system allows combination with other rack types
- Bright signal colours of orange and blue
- Self-securing rack layers thanks to the practical stepped beams
Practical and with mesh shelf: the worktable from TOPREGAL
This worktable is fitted with 2 mesh shelves. The galvanised surface makes it much easier to store liquids and clean the shelf. Thanks to the special design of our stepped beams, the mesh shelves fix themselves in place and are secured against slipping or falling out. These orange painted beams can be attached individually in increments of 50 mm thanks to the plug-in system. The height of the overall table can also be adjusted by up to 40 cm. This means the worktable can be configured to suit your needs.

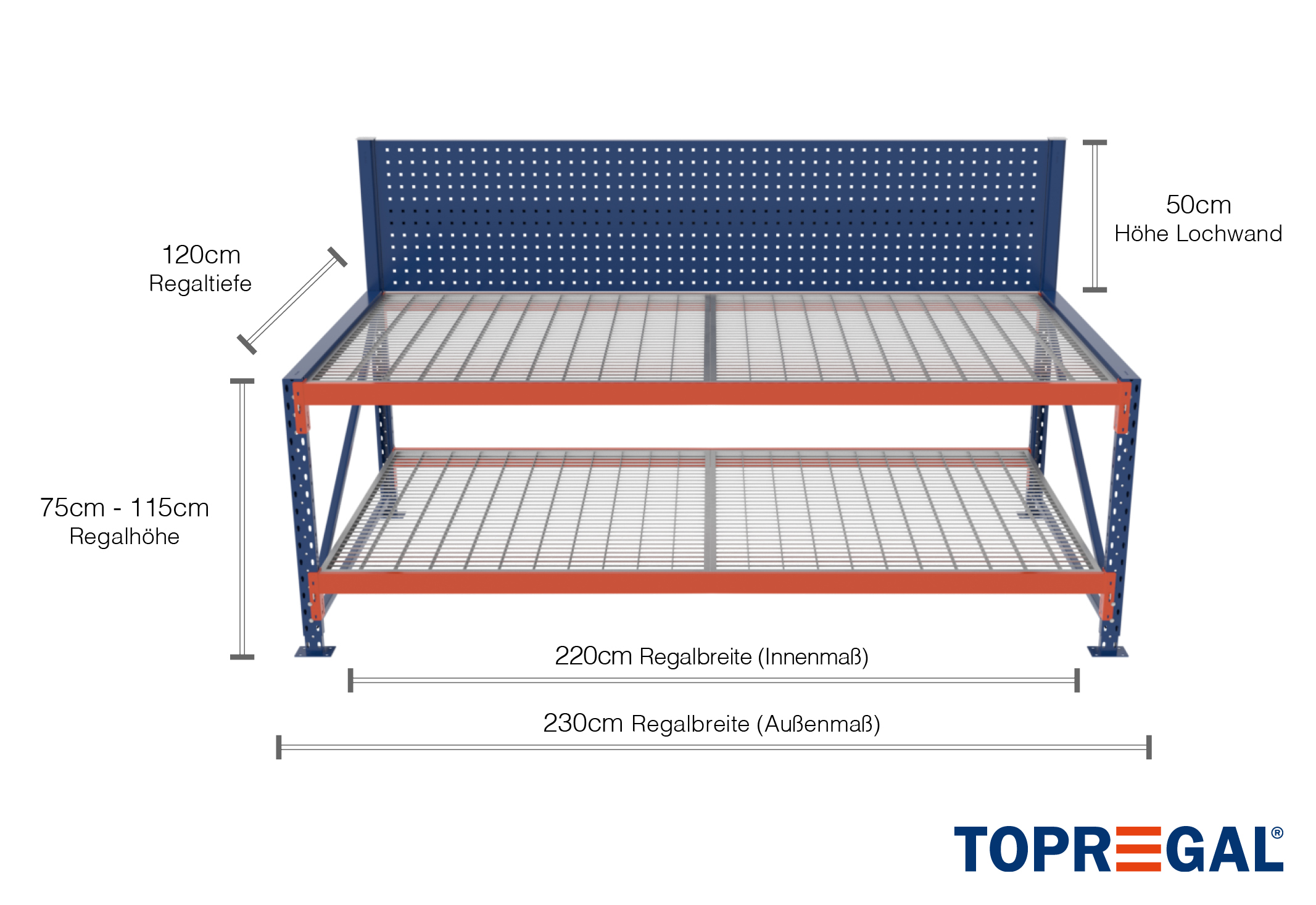

The outer dimension of this worktable is 2,3 m, where the usable contact area, known as the inside dimension, is 10 cm shorter. This can be used for easy storage of dry goods, such as screws, assembly parts and other items.
Alternatively, we also offer our storage-rack worktables with practical kanban boards, robust multiplex boards, 25 mm-thick wooden boards or steel boards.
A blue painted worktable upright comprises a front and a rear upright profile. These are connected by screwed-in cross struts and diagonal struts for stability. The supplied panels finish off the upright at the top and ensure the necessary occupational safety.
All material required for assembly, such as screws and nuts, is included in the delivery volume.
Practical stowing of tools: with the perforated rear panel
The perforated rear panel with a height of 50 cm is attached to the rear upright and is used as push-through protection. It protects stored goods from falling out whenever the worktable becomes full. In addition, the perforated rear panel can be individually equipped with our tool holder sets. This is a neat way to store your tools and other objects, such as storage bins for screws, nuts, washers and other small parts.
Important information
All data refer to evenly distributed loads. When loaded, the shelf load and field load must not be exceeded. In principle, the current guidelines on safety and health at work (DGUV Rule 108-007 / BGR 234) apply during use. TOPREGAL accepts no liability for accidents/damage caused by improper use. Our expert advisory team will be pleased to answer any questions you may have. Dimensions given are approximate and may deviate by a few centimetres. Contact us if you need the exact dimensions for your desired product.
