3,5 m storage rack LR2000 / 60 cm deep / 2 m high / 5 levels / rack layer wood
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★

Discounts of up to 10% on the value of your cart!
3 %
5 %
10 %
Technical data & downloads
Article No. 2236
  • Model
  • Number of levels
  • Rack layer
  • Width
    3.500 mm
  • Depth
    600 mm
  • Height
    2.000 mm
  • Max. Load per field
    2.000 kg
  • Max. Load per level
    500 kg
  • Max. Load per module
    500 kg
Delivery volume
  • 3 x upright 2 m high / 60 cm deep, unit load capacity: 2.000 kg
  • 10 x beam 110 cm wide incl. safety pins, compartment load capacity: 500 kg
  • 10 x beam 220 cm wide incl. safety pins, compartment load capacity: 500 kg
  • 5 x wooden board 110 cm wide / 60 cm deep, max. load capacity: 500 kg
  • 5 x wooden board 220 cm wide / 60 cm deep, max. load capacity: 500 kg
  • Assembly material and assembly instructions
  • Load capacity labels in accordance with German DGUV 108-007 specification (formerly BGR 234)
  • 5 years warranty
  • High compartment load capacity of 500 kg and unit load capacity of 2.000 kg
  • Highly versatile in assembly thanks to the modular system
  • Attractive look in bright blue and orange
  • Different shelf supports for a wide range of applications
  • Simple plug-in system for straightforward racking assembly

Wide span rack from TOPREGAL: Highly durable, versatile design

The storage racks from TOPREGAL meet all requirements thanks to their stability and versatility. Our wide span racks have an impressive unit load capacity (total load with even distribution between two uprights) of 2.000 kg and a compartment load capacity of 500 kg. This makes it easy to store different types of goods, including bulky and heavy items.
In addition, the TOPREGAL storage racks have been tested in accordance with the German DGUV 108-007 specification for their stability, rigidity and load capacity.
Assembly is complete in just a few steps. Thanks to the simple plug-in system, you can attach the beams individually in increments of 50 mm and secure them with safety pins. The modular system of our storage racks ensures that your rack can be widened at any time or expanded to include more levels. This racking type features an attractive appearance, with orange beams and blue storage rack uprights, as well as a robust and durable design.

The optimal rack layer for your application

The 25 mm-thick wooden board for the storage rack LR2000 is ideal for storing dry products, such as cartons or storage boxes, and is simply placed in the stepped beam. The maximum load per board is 500 kg.

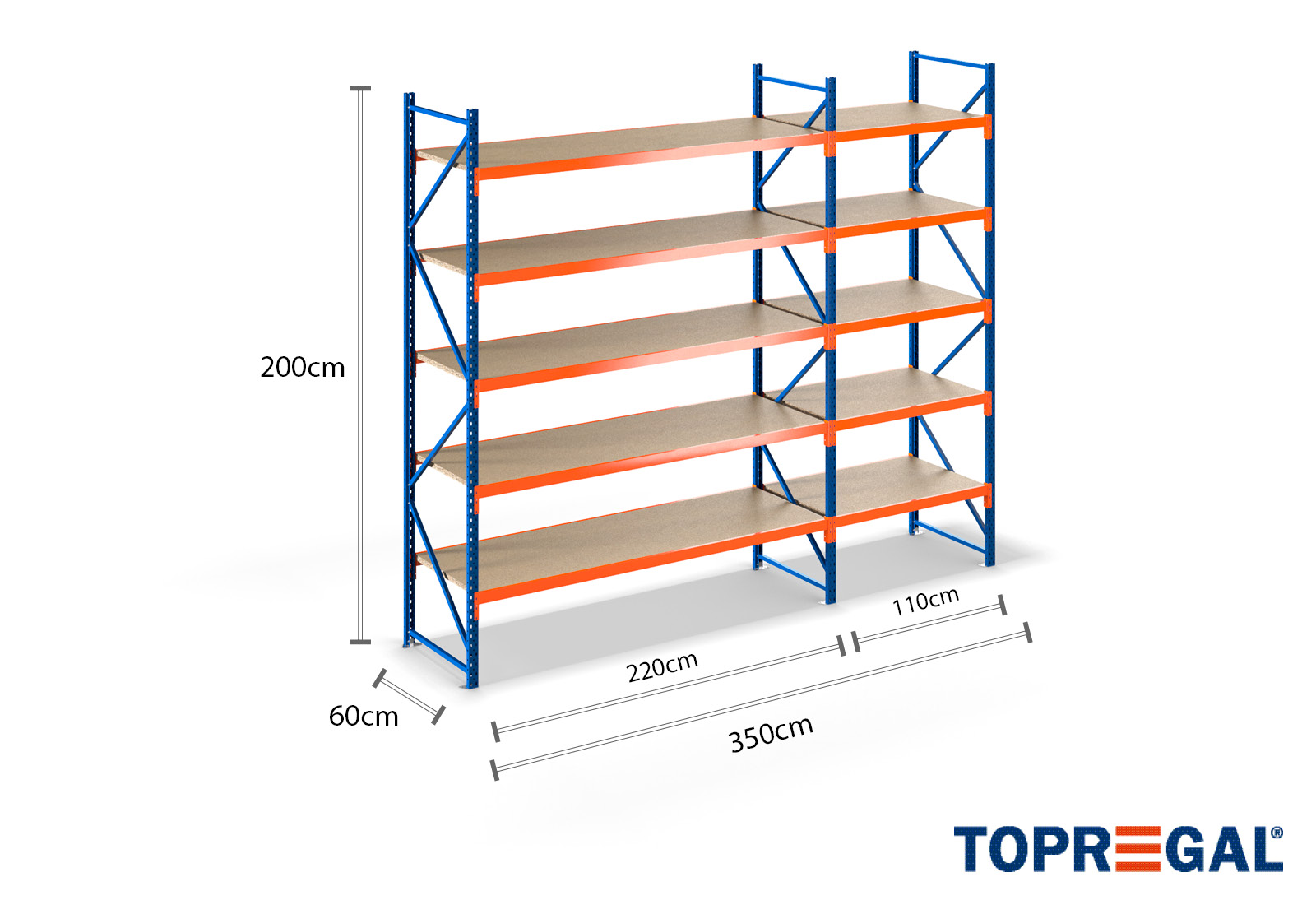

Practical dimensions, simple assembly

This storage rack features an impressive height of 2 m, and is 60 cm deep and 3,5 m wide. The 5 levels each offer a maximum load capacity of 500 kg; the maximum load capacity between two uprights (unit load capacity) of 2.000 kg must not be exceeded. In all cases, the data refer to an even load on the racks. Assembly is quick and easy thanks to the plug-in system. For wide span racks from TOPREGAL, there is also a wide selection of individual parts and accessories, such as rack uprights, beams, magnetic tapes and storage bins.

All material required for assembly is included in the delivery volume. more

Important information

All data refer to evenly distributed loads. When loaded, the shelf load and field load must not be exceeded. In principle, the current guidelines on safety and health at work (DGUV Rule 108-007 / BGR 234) apply during use. TOPREGAL accepts no liability for accidents/damage caused by improper use. Our expert advisory team will be pleased to answer any questions you may have. Dimensions given are approximate and may deviate by a few centimetres. Contact us if you need the exact dimensions for your desired product.

 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
