LED Screen Trailer MVT-LED113, 113 in LED display, TecMaschin
- LED screen with a display area of 2.560 mm × 1.280 mm
- Brightness of up to 6.000 Nits for outdoor use
- Screen rotates up to 330 °
- Pixel pitch of 4 mm for clearly legible content from a few metres away
- NovaStar controller for flexible media playback
- Power consumption max. 3.000 W with lower average consumption
- LED screen with a display area of 2.560 mm × 1.280 mm
- Brightness of up to 6.000 Nits for outdoor use
- Screen rotates up to 330 °
- Pixel pitch of 4 mm for clearly legible content from a few metres away
- NovaStar controller for flexible media playback
- Power consumption max. 3.000 W with lower average consumption
-
ModelMVT-LED113
-
MobileYes
-
Resolution640 x 320 px
-
Weight392 kg
-
ColourBlack
-
Number of colours16.700 Mio.
-
Contrast5000:1
-
Width1.800 mm - 2.610 mm
-
Height2.250 mm - 3.110 mm
-
Assembledyes
-
Protection class65
-
Range of applicationIndoor / Outdoor
-
Brightness6.000 Nits
-
Length3.458 m
-
Working temperature-30 °C - 60 °C
-
Connections/interfacesHDMI / LAN
-
Pixel pitch4 px
- 1 x LED Screen Trailer MVT-LED113, 113 in LED display, TecMaschin
- 12 Months warranty
- LED screen with a display area of 2.560 mm × 1.280 mm
- Brightness of up to 6.000 Nits for outdoor use
- Screen rotates up to 330 °
- Pixel pitch of 4 mm for clearly legible content from a few metres away
- NovaStar controller for flexible media playback
- Power consumption max. 3.000 W with lower average consumption

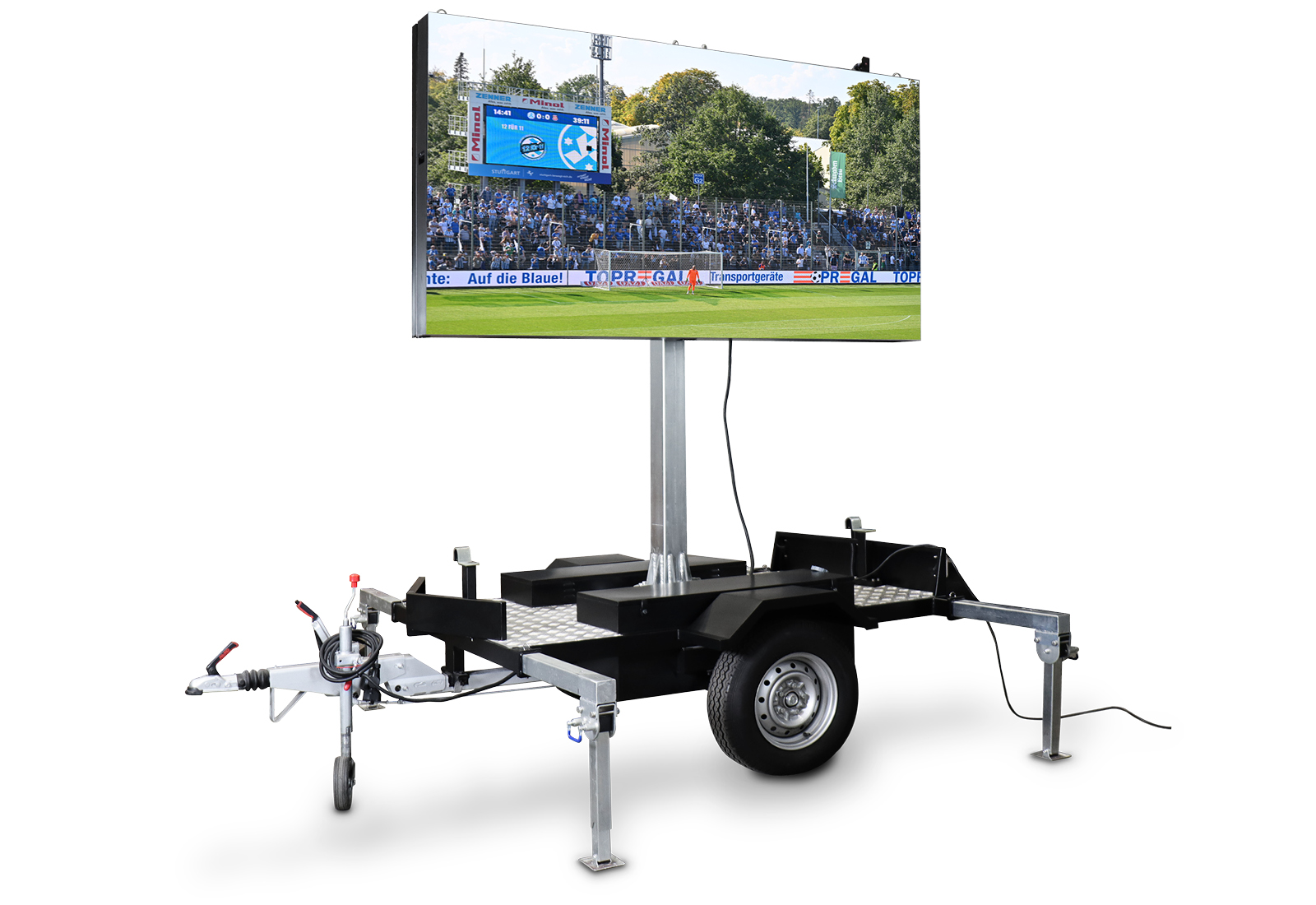

Your compact LED trailer for mobile advertising and events
The MVT-LED113 LED trailer is the perfect solution for displaying digital content at events, promotional campaigns or temporary advertising spaces. Thanks to its overall dimensions of 3.458 m x 1.800 mm x 2.250 mm (L x W x H) and a weight of just 392 kg, a suitable towing vehicle with a trailer coupling is sufficient for transporting the single-axle LED trailer within Germany. In many cases, a Category B driving licence is sufficient for this, depending on the specific vehicle combination. When used outside Germany, the operator must independently inform themselves in advance of the applicable national regulations, particularly regarding driving licence requirements and permissible vehicle combinations.
The 2.560 mm x 1.280 mm display, with a pixel pitch of 4 mm, delivers impressive images that are guaranteed to catch the attention of passers-by. Whether it’s event announcements, promotional videos or live updates, this LED display allows you to show a wide variety of content easily and effectively. The images remain clear and vivid even in direct sunlight. The brightness sensor ensures that the optimal brightness of up to 6.000 Nits is set depending on the ambient conditions. The recommended viewing distance is at least 4 m, making the trailer particularly suitable for events, trade fairs or outdoor advertising.

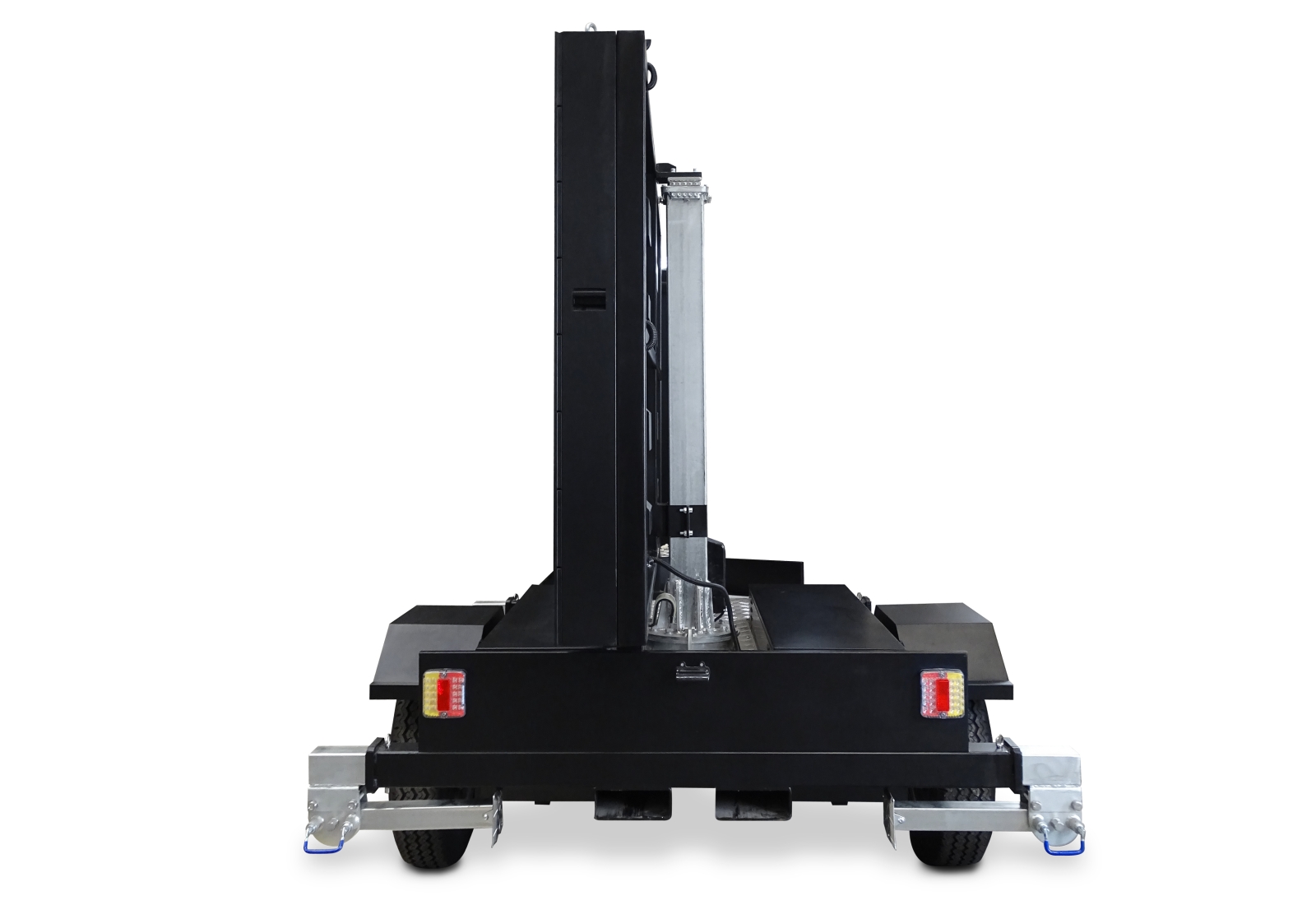

Particularly flexible for perfect alignment

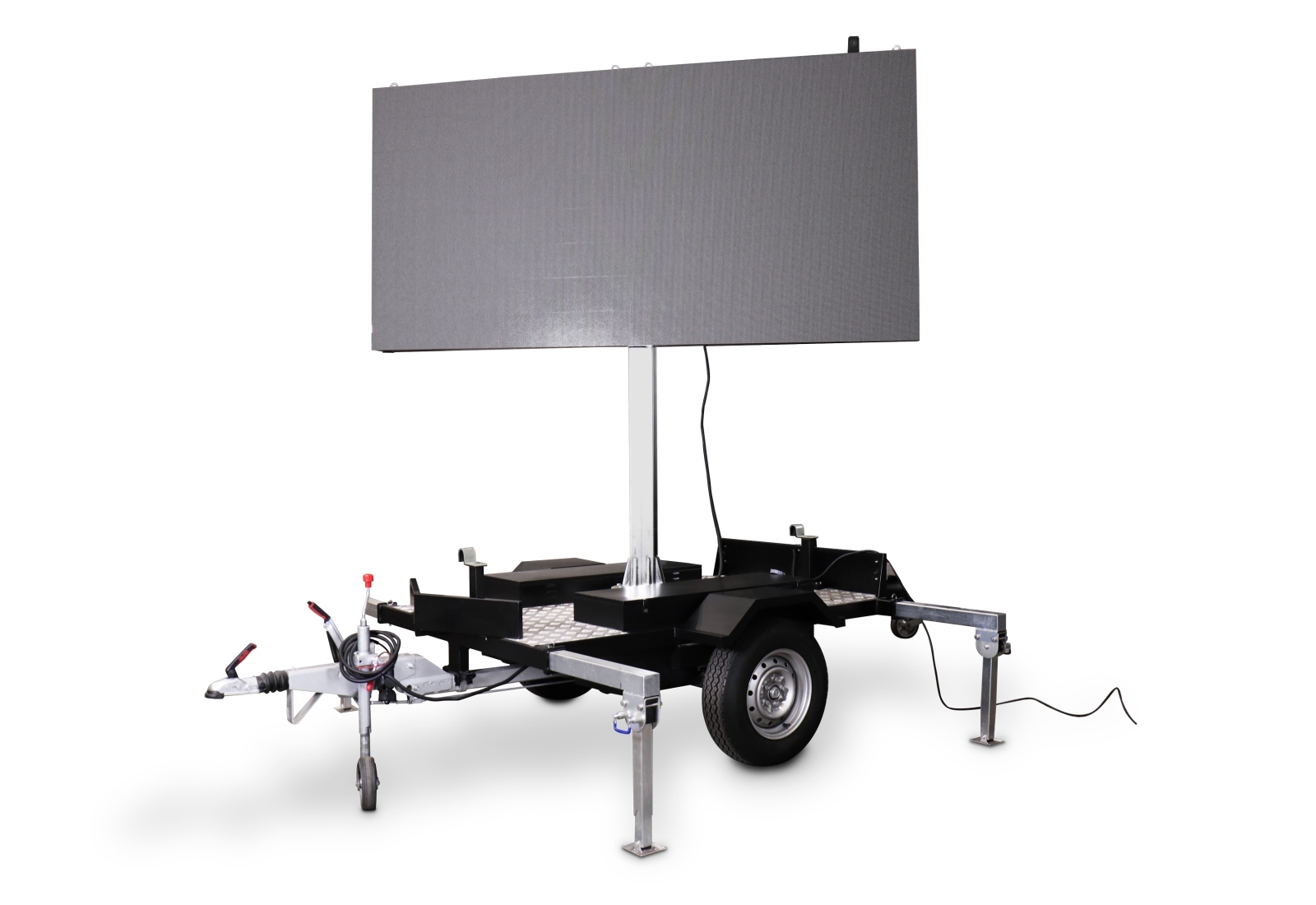

Once set up, the LED screen can be rotated up to 330 °. This allows the display to be flexibly aligned with the desired audience or traffic direction. Content remains clearly visible even when viewed from the side, as the screen offers a viewing angle of up to 140 °. The display can also be adjusted in height. This allows you to extend the display to a height of up to 3.110 mm, depending on the specific application. This flexible alignment is particularly useful at events or in high-traffic areas where the trailer needs to be positioned differently depending on the location.
Simple power supply for flexible use
A 230 V power supply is required to operate the video wall trailer. The maximum power consumption is 3.000 W, whilst the average consumption is around 1.000 W. This means the trailer can be operated without any issues at events – for example, using suitable generators or temporary power connections.
Easy control via smartphone or laptop
Control is handled via the integrated NovaStar-TB50 controller, which supports both synchronous and asynchronous operation. Content can be transferred to the LED display in a matter of seconds via a laptop and HDMI cable or via a smartphone app. The integrated timer allows you to set the times at which the display should be switched on or off.
Typical applications
- Events and festivals
- Trade fairs and promotional campaigns
- Outdoor advertising and city marketing
- Smaller events and mobile advertising campaigns
Note
Please familiarise yourself with the applicable national regulations in the country of use prior to commissioning. Commissioning and the provision of suitable personnel for this purpose are the responsibility of the commissioning party.
-
