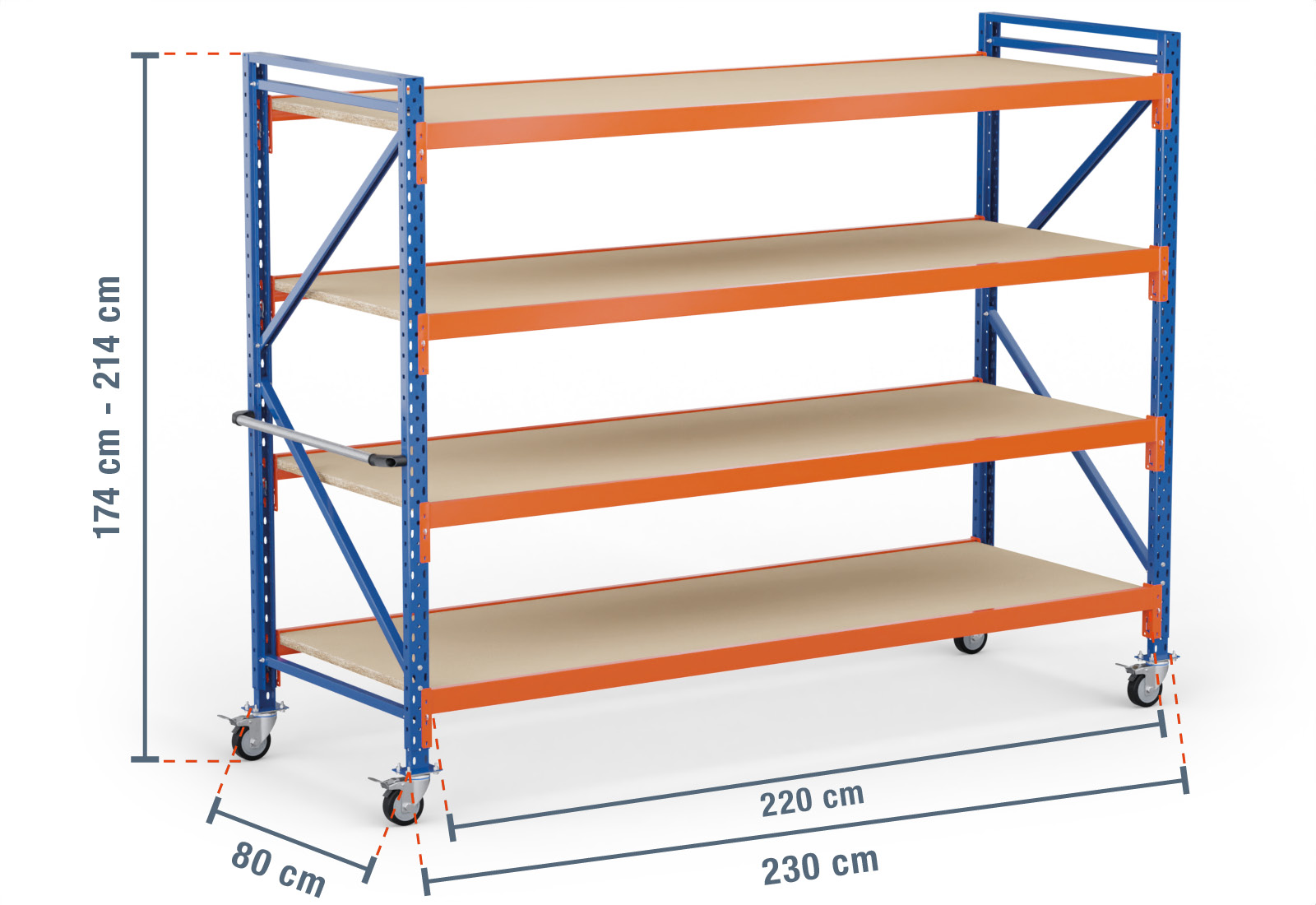

2,3 m mobile storage rack LR2000 / 80 cm deep / 1.740 - 2.140 mm high / 4 levels / rack layer Wood

 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
Discounts of up to 10% on the value of your cart!
2.000
3 %
5.000
5 %
10.000
10 %
Technical data
Article No. 86070
  • Model
    LR2000
  • Number of levels
    4
  • Rack layer
    Wood
  • Surface
    Painted
  • Width
    2.300 mm
  • Depth
    800 mm
  • Height
    1.740 mm - 2.140 mm
  • Max. Load per field
    500 kg
  • Range of application
    Indoor
Media
Delivery volume
  • 2 x storage-rack upright 1,74 m high with 40 cm height-adjustable foot part / 80 cm deep incl. mobile castors and panels for rack upright
  • 0 x storage-rack single beam 110 cm, compartment and unit load capacity: 500 kg
  • 8 x storage-rack single beam 220 cm, compartment and unit load capacity: 500 kg
  • 4 x storage-rack wooden board 220 cm wide / 80 cm deep, load capacity: 500 kg
  • 1 x transport handle – mobile storage rack / pallet rack
  • All accessories such as screws, nuts and all material required for assembly
  • Assembly instructions
  • 5 Years warranty
  • Subsequent adjustment and extension possible thanks to modular system
  • Roller bearings for maximum flexibility in warehouse and production
  • High-quality finish of the mobile storage rack
  • Specially designed for commercial/industrial use
  • Low-cost wooden board ideal for storage of dry goods

Fully configured mobile storage rack with wooden boards

The wooden board for the storage racks from TOPREGAL is ideal for storing goods, parcels, piece goods, small parts and other dry items. The low weight of the storage rack wooden board is a big advantage. Comprising a 25 mm-thick chipboard panel, the wooden board itself is secured in the practical stepped beams of the storage rack to prevent it from slipping or falling out.

Mobile storage rack: reliable storage for heavy loads

The outer dimension of this mobile storage rack from TOPREGAL is 2,3 m, where the usable contact area, known as the inside dimension, is 10 cm shorter. The compartment load capacity and unit load capacity of the rack are 500 kg. All data refer to evenly distributed loads.

The orange painted storage rack beams are the actual load-bearing elements of the rack and are attached to the uprights with a simple plug-in system. They are then secured with safety pins to prevent them from being accidentally lifted out. Extra practicality: To customise your mobile storage rack, the height of the beams can be adjusted in increments of 50 mm. You can add more levels at a later time so that the compartment size is optimised for your application.

The blue painted rack uprights of the mobile storage rack each comprise a front and a rear upright profile. In addition, two castors with locking brakes are screwed under the rack uprights in order to guarantee the necessary flexibility in your warehouse. To ensure occupational safety, the top ends of the storage rack upright are sealed with panels.

Mobile and flexible: the mobile storage rack from TOPREGAL

The complete rack is equipped with two 1,74 m-high uprights and four mobile castors, incl. locking brakes, making it suitable for mobile use. It is specially designed for commercial/industrial operation and is able to withstand tougher working environments. All assembly material is included in the delivery volume.

Thanks to the modular system of our storage racks, you can extend this mobile storage rack to meet your needs and combine it with other rack types for optimal coverage of your application.

......read more
Notes

Important information

All data refer to evenly distributed loads. When loaded, the shelf load and field load must not be exceeded. In principle, the current guidelines on safety and health at work (DGUV Rule 108-007 / BGR 234) apply during use. TOPREGAL accepts no liability for accidents/damage caused by improper use. Our expert advisory team will be pleased to answer any questions you may have. Dimensions given are approximate and may deviate by a few centimetres. Contact us if you need the exact dimensions for your desired product.
