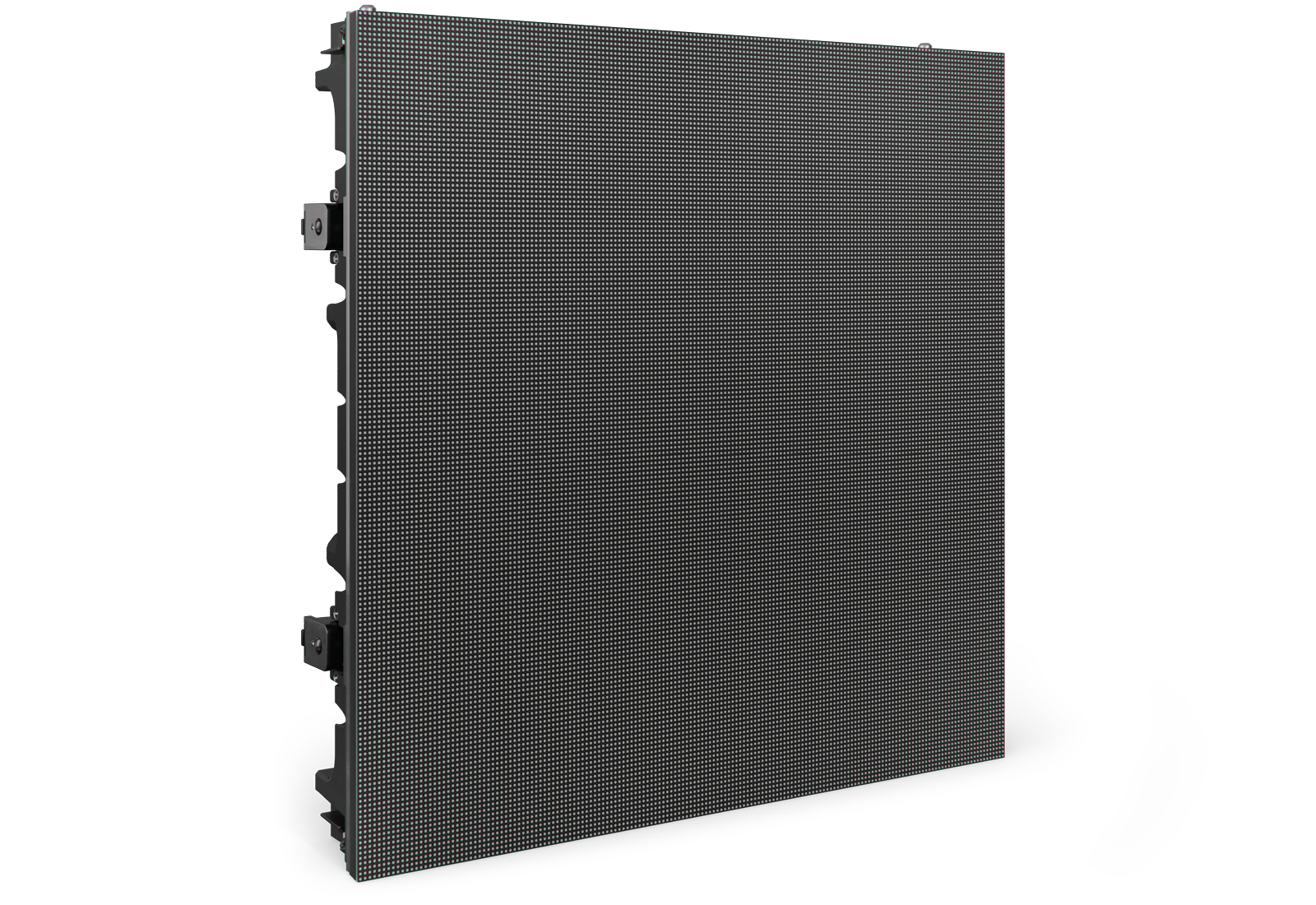

LED video wall DVW-LED50-3/CB Single panel with rear access, 500 mm x 500 mm, TecMaschin
- Bright, sharp images for particularly effective advertising messages
- Energy-efficient in continuous use, with maximum consumption of 130 W per panel
- Particularly easy and individually expandable thanks to modular design
- Curved installations also possible (maximum 10° external and 15° internal mounting angle)
- Ideally suited for trade fairs, sales stands, events and information areas
- Bright, sharp images for particularly effective advertising messages
- Energy-efficient in continuous use, with maximum consumption of 130 W per panel
- Particularly easy and individually expandable thanks to modular design
- Curved installations also possible (maximum 10° external and 15° internal mounting angle)
- Ideally suited for trade fairs, sales stands, events and information areas
-
ModelDVW-LED50-3/CB
-
Weight7 kg
-
Depth88 mm
-
Height500 mm
-
Range of applicationIndoor
-
Brightness1.000 Nits
-
Wide panel500 mm
-
Pixelpitch2,976 mm
- 1 x LED video wall DVW-LED50-3/CB Single panel with rear access, 500 mm x 500 mm, TecMaschin incl. 1 power cable and 1 signal cable
- 12 Months warranty
- Bright, sharp images for particularly effective advertising messages
- Energy-efficient in continuous use, with maximum consumption of 130 W per panel
- Particularly easy and individually expandable thanks to modular design
- Curved installations also possible (maximum 10° external and 15° internal mounting angle)
- Ideally suited for trade fairs, sales stands, events and information areas
The ideal solution for effective indoor presentations
With a brightness of up to 1.000 Nits and a pixel pitch of 2,976 mm, the LED video wall from TecMaschin ensures clear and high-quality advertising messages. The resolution per module is 168 x 168 pixels, which means that the optimal viewing distance is between 3 m and 30 m. The average power consumption is only 130 watts per panel and 520 W/m², which makes the video wall particularly energy-efficient even in continuous use.
Whether at events, trade fairs, in sales rooms or halls, with the DVW-LED50-3/CB you are sure to create an impressive eye-catcher that is guaranteed to attract attention. The LED screen is suitable for indoor use and is ideal for flexible and modular applications, as it can be easily expanded as required.
Flexible installation and maintenance
The compact dimensions of 500 mm x 88 mm x 500 mm and the low weight of 7 kg per module ensure simple setup – without the need for professional technicians or special equipment.
The LED wall can also be mounted at an angle. With a maximum external mounting angle of 10° and a maximum internal mounting angle of 15°, you have plenty of design freedom.
Maintenance access, should a module need to be replaced, is from the rear. To do this, 10 screws must be loosened per module. Alternatively, you can request maintenance access from the front.
Whether at trade fairs, in sales rooms, at events or in information areas, TecMaschin's DVW-LED50-3/CB video walls guarantee maximum attention for your advertising and presentations.
