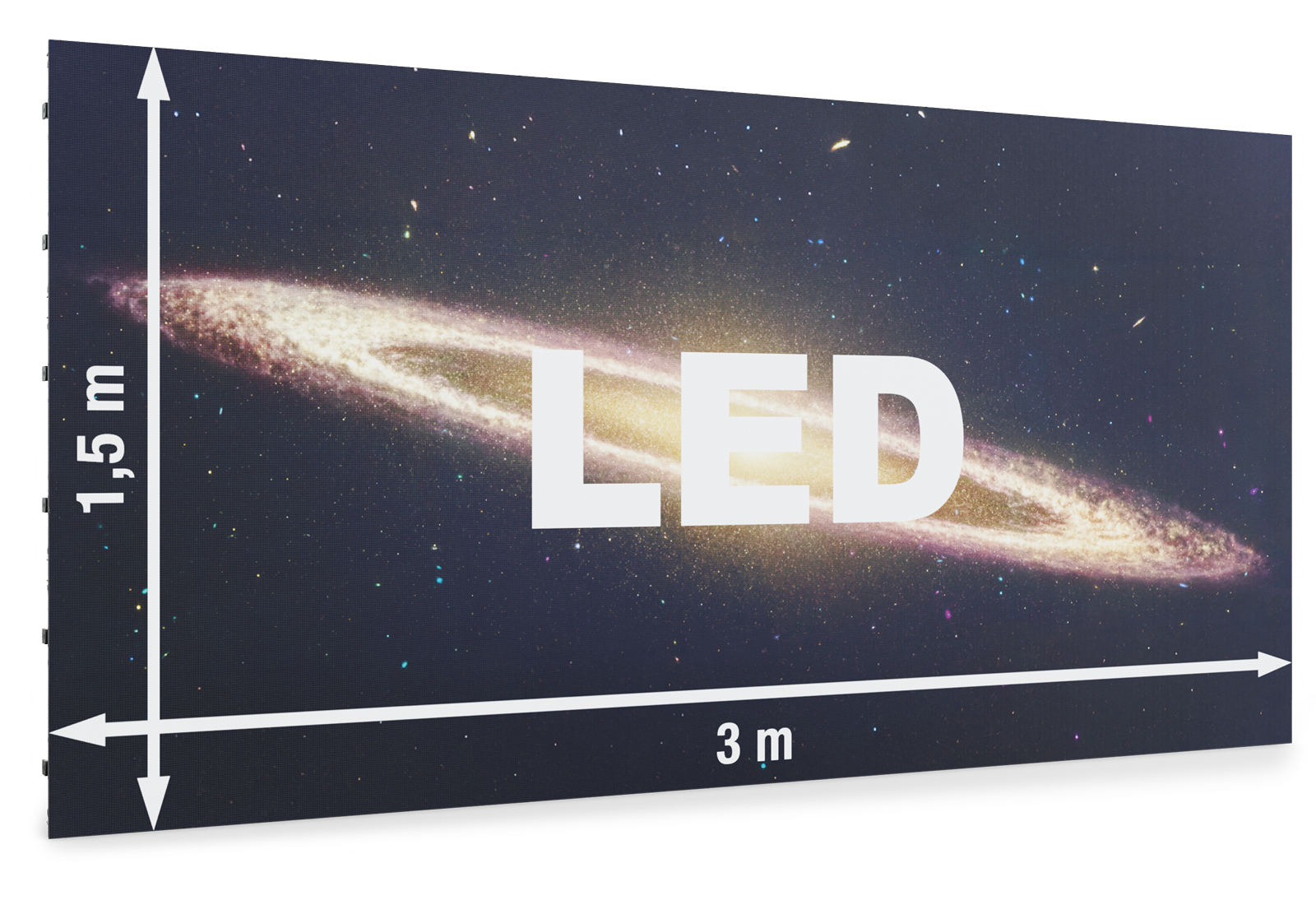

3 m x 1,5 m LED video wall DVW-LED50-3/CB with rear access, TecMaschin
- Bright, sharp images for particularly effective advertising messages
- Energy-efficient in continuous use, with maximum consumption of 130 W per panel
- Particularly easy and individually expandable thanks to modular design
- Curved installations also possible (maximum 10° external and 15° internal mounting angle)
- Ideally suited for trade fairs, sales stands, events and information areas
- Bright, sharp images for particularly effective advertising messages
- Energy-efficient in continuous use, with maximum consumption of 130 W per panel
- Particularly easy and individually expandable thanks to modular design
- Curved installations also possible (maximum 10° external and 15° internal mounting angle)
- Ideally suited for trade fairs, sales stands, events and information areas
-
ModelDVW-LED50-3/CB
-
Weight7 kg
-
Depth88 mm
-
Range of applicationIndoor
-
Total height1,5 m
-
Brightness1.000 Nits
-
Total width3 m
-
Wide panel500 mm
-
Pixelpitch2,976 mm
- 3 m x 1,5 m LED video wall DVW-LED50-3/CB with rear access, TecMaschin including cable and NovaStar video controller
- 12 Months warranty
- Bright, sharp images for particularly effective advertising messages
- Energy-efficient in continuous use, with maximum consumption of 130 W per panel
- Particularly easy and individually expandable thanks to modular design
- Curved installations also possible (maximum 10° external and 15° internal mounting angle)
- Ideally suited for trade fairs, sales stands, events and information areas
The ideal solution for effective indoor presentations
With a brightness of up to 1.000 Nits and a pixel pitch of 2,976 mm, the LED video wall from TecMaschin ensures clear and high-quality advertising messages. The resolution per module is 168 x 168 pixels, which means that the optimal viewing distance is between 3 m and 30 m. The average power consumption is only 130 watts per panel and 520 W/m², which makes the video wall particularly energy-efficient even in continuous use.
Whether at events, trade fairs, in sales rooms or halls, with the DVW-LED50-3/CB you are sure to create an impressive eye-catcher that is guaranteed to attract attention. The LED screen is suitable for indoor use and is ideal for flexible and modular applications, as it can be easily expanded as required.
Flexible installation and maintenance
The compact dimensions of 500 mm x 88 mm x 500 mm and the low weight of 7 kg per module ensure simple setup – without the need for professional technicians or special equipment.
The complete LED video wall package, consisting of 18 modules with a total length of 3 m and a height of 1,5 m, also includes everything you need to get started. With the Novastar Box, you can display content from your computer on the video wall quickly and easily. The LED wall can also be mounted in a curved configuration. With a maximum external mounting angle of 10° and a maximum internal mounting angle of 15°, you have plenty of design freedom.
Maintenance access, should a module need to be replaced, is from the rear. To do this, 10 screws must be loosened per module. Alternatively, you can request front maintenance access from us.
Whether at trade fairs, in sales rooms, at events or in information areas, TecMaschin's DVW-LED50-3/CB video walls guarantee maximum attention for your advertising and presentations.
All power and signal cabling for the LED video wall is included in the price. Our team will contact you to ensure correct and quick planning. With a 16 A socket protection, a maximum of 24 LED video wall panels can be connected to one circuit.
If required, the TOPREGAL installation team will also take care of the installation for you – simply request a quote for installation in your shopping cart with just a few clicks.
